F-142182 Chain | Forged Link Chain

F142182 Forged Link Chain

Alternative Views:

Product Code: JKF-142182-CHAIN

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

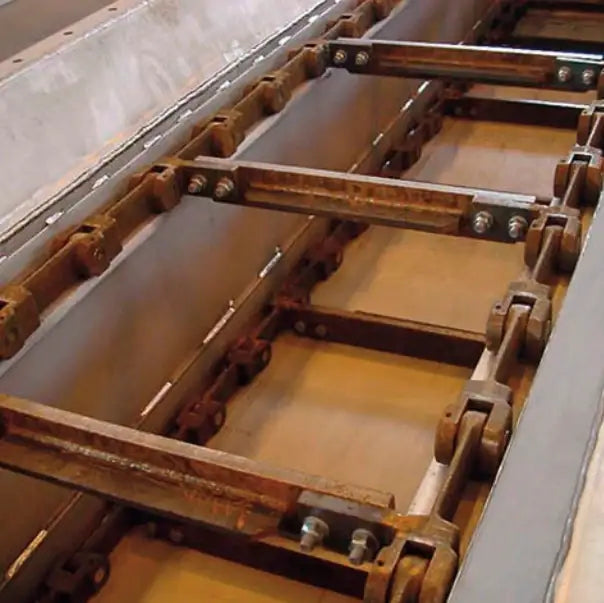

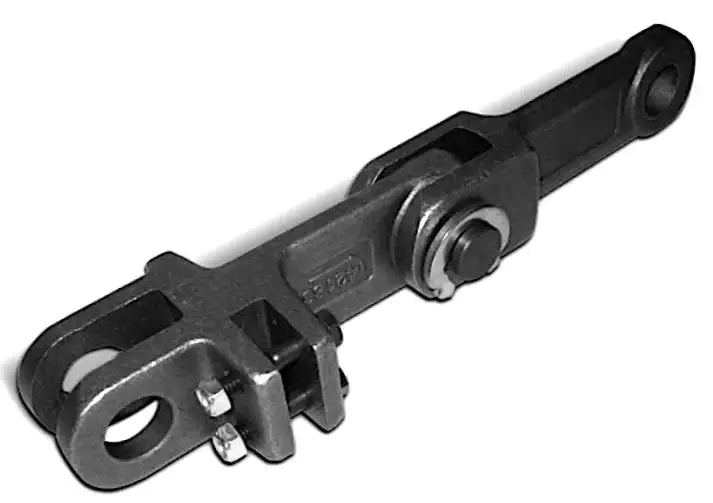

F-142182 Chain has proven to be one of the most reliable conveying mediums offering a combination of versatility, strength, and abrasion resistance. Specifically, this forged link chain is designed for double-strand assemblies. These chains have a forged "double-clevis" which a scraper can easily be attached to with a u-bolt or standard fasteners. The chain allows some built-in clearance between strands which gets rid of any potential problems that may be associated with a mismatch. Double strand assemblies allow for more discharge in conveying applications that have sticky materials. Typically F142182 chain is found in wastewater applications, food processing, chemical plants, foundries, and even refineries. The high-strength and extreme durability of F-142182 chain make it an ever-growing option for conveying applications. What separates this forge link chain is various heat-treat processes and the material options available.

TN _ Manganese Chrome Alloy Steel (20MnCr5) Case hardened
CN _ Chrome Nickel Alloy Steel (18NiCoMo5) Case Hardened
CD _ Chrome Molly Alloy Steel (42CrMo4) Hardened & Tempered

We also supply F-142182 chain sprockets, pin styles, and attachment types. For more information or to get a quote please contact us and we will be happy to assist you.

F142182 Chain Dimensions

Chain Size: F-142182
Pitch (P): 142mm
Dimension (T): 42mm
Dimension (C): 50mm
Dimension (S): 19mm
Dimension (Z): 70mm
Dimension (G): 13mm
Bolt-Hole Diameter (D): 25mm
TN Option Breaking Load: 290 kN
CN Option Breaking Load: 320 kN
CD Option Breaking Load: 550 kN
Weight: 11.80 kG/ M

F-142182 Pin Options

Type 22 - Standard Double Circlip	Type HD/22 - Hardened Pin With Standard Circlip	Type HD/45/28RP - Headed Pin With Collar and Roll Pin Retention
Type 22 - Standard Double Circlip	Type HD/22 - Hardened Pin With Standard Circlip
Type HD/45/28S - Headed Pin With Collar and S Cotter Retention	Type SN/28S - Antirotation Snub Pin Washer and S Cotter Retention	Type HD/28S - Headed Pin With Washer and S Cotter Retention

F-142182 Chain Attachments
