EC820 K325 Table Top Chain
EC820 K325 Table Top Chain
EC820 K325 Table Top Chain

Note: Se Habla Espanol


Availability: In Stock
Product Code: EC820-K325-CHAIN
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

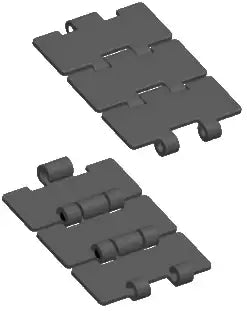

EC820 K325 Table Top Chain is a premium quality chain that is 3.25" wide, and is black in color. The benefits of this chain are that it is manufactured out of electrically conductive POM, this is used in explosive areas where sparks and static must be avoided (such as areas with filling aerosol, camping gas, and others of the same). The standard EC820 chain holds a surface resistivity _ 1 x 10^6 Ohm. The EC820 K325 chain that we have is manufactured to be high strength, have great performance, and extreme durability. It uses 304-grade stainless steel pins and is standardly supplied as 10ft boxes (80-Links). We can supply this chain in other colors and configurations upon request, as well as with rubber top attachments on the chain.


EC820 K325 Chain Dimensions


  • Chain Size: EC820 K325
  • Pitch (P): 1.50"
  • Backflex Radius: 3.00"
  • Tensile Strength: 450 LBS
  • Width (W): 3.25"
  • Chain Material: POM-EC
  • Color: Black
  • Pin Material: 304-SS
  • Dimension (E): 0.25"
  • Dimension (G): 1.75"
  • Dimension (H): 0.37"
  • Dimension (L): 0.28"
  • Dimension (Q): 1.63"
  • Dimension (T): 0.16"
  • Chain Weight: 0.57 LBS/ FT


Besides the EC820 K325 table top chain, we also have a full line of 820 series sprockets available from stock. The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.
Stock 820 Sprocket Size Chart
Sprocket Type Tooth Count Overall Diameter
Solid 820-Z19194.61"
Solid 820-Z21215.12"
Solid 820-Z23235.59"
Solid 820-Z25256.10"
Solid 820-Z27276.57"
Solid 820-Z29297.05"
Solid 820-Z31317.56"
Split 820-Z19194.61"
Split 820-Z21215.12"
Split 820-Z23235.59"
Split 820-Z25256.10"


In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on EC820 K325 chain, sprockets, or other products please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!
About Us
Features
    • High Quality Table Top chain
    • Self Lubricating
    • Interchangeable With Other Brands
    • Supplied As 10ft Lengths

Accessories
820 Series Rubber Tops
820 Series Rubber Top
