D 821 K1000 Table Top Chain

D 821 K1000 Table Top Chain

Note: Custom Cut to Length Chain Also Available
Product Code: D821-K1000-CHAIN
Other Customers Viewed
821 Series Rubber Tops
821 Series Rubber Tops
Login
View full details
Description
Specification

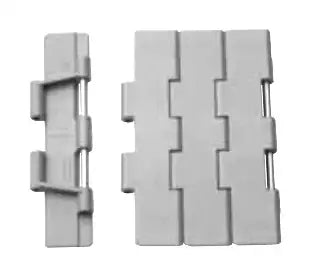

D 821 K1000 Table Top Chain is a premium quality chain that is 10.00" wide, self lubricating, and is available in a white or grey color. The benefits of this chain is that it is manufactured out of polymers with self lubricating properties that offers a higher friction than that of the LF or SLF type materials. The D 821 K1000 chain that we have is manufactured to be high strength, have great performance, and extreme durability. It uses 304-grade stainless steel pins and is standardly supplied as 10ft boxes (80-Links). We can supply this chain in other colors besides the grey and white upon request, as well as with rubber top attachments on the chain.

D 821 K1000 Chain Dimensions


  • Chain Size: D821-K1000
  • Pitch: 1.50"
  • Width (W): 10.00"
  • Chain Material: POM-D
  • Chain Color: Grey
  • Pin Material: 304 Stainless Steel
  • Dimension (E): 0.25"
  • Dimension (G): 5.51"
  • Dimension (H): 0.37"
  • Dimension (L): 0.31"
  • Dimension (Q): 5.37"
  • Dimension (T): 0.20"
  • Chain Weight: 2.08 LBS/ FT



Besides the D821 K1000 table top chain, we also have a full line of 821 series sprockets available from stock. The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.

Stock 821 Sprocket Size Chart
Sprocket Type Tooth Count Overall Diameter
Solid 821-Z19 19 4.61"
Solid 821-Z21 21 5.12"
Solid 821-Z23 23 5.59"
Solid 821-Z25 25 6.10"
Solid 821-Z27 27 6.57"
Solid 821-Z29 29 7.05"
Solid 821-Z31 31 7.56"
Split 821-Z25 25 6.10"

In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on D 821 K1000 chain, sprockets, or other products please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!


Feature

  • High Quality Table Top chain
  • Extreme Performance
  • Interchangeable With Other Brands
  • Supplied As 10ft Lengths
