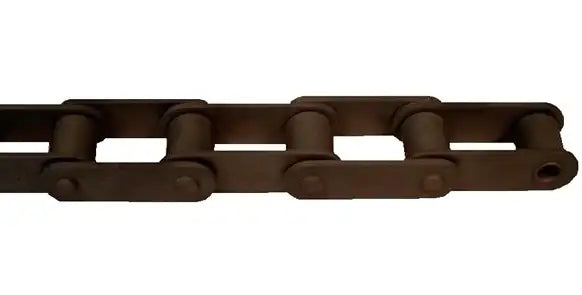

CA550HD Roller Chain - 10ft Box (Agricultural Roller Chain)

CA550HD roller chain is commonly known as an CA550HD agricultural roller chain and is manufactured using hardened steel parts to close tolerances. This CA550HD roller chain is durable, high quality, high strength, and has a long working life. CA550HD agricultural roller chain is found in a wide range of applications including; agriculture, conveyors, corn gathering, elevator feed stations, feeder house, forage harvesters, baggers, grain handling, manure spreaders, and more! We offer a full line of CA550HD roller chain attachments that can be assembled onto the chain in any configuration needed. We also offer a full line CA550HD roller chain sprockets and can supply them with almost any hub, bore, or tooth configuration needed. For more information on CA550HD roller chain or to get a quote on attachments or sprockets please contact us and we will be happy to assist you.

Dimensions:

• Chain Size: CA550HD
• Pitch (P): 1.630
• Roller Width (W): 0.797"
• Roller Diameter (D): 0.656"
• Overall Width Riveted (C): 1.516"
• Overall Width Cottered: 1.594"
• Link Plate Height (H): 0.813"
• Link Plate Thickness (T): 0.120"
• Pin Diameter (E): 0.316"
• Ultimate Strength: 15,250 LBS
