AR820 K325 Table Top Chain

AR820 K325 Table Top Chain

Note: Custom Cut to Length Chain Also Available
Product Code: AR820-K325-CHAIN
Other Customers Viewed
820 Series Rubber Tops
820 Series Rubber Tops
Login
View full details
Description
Specification

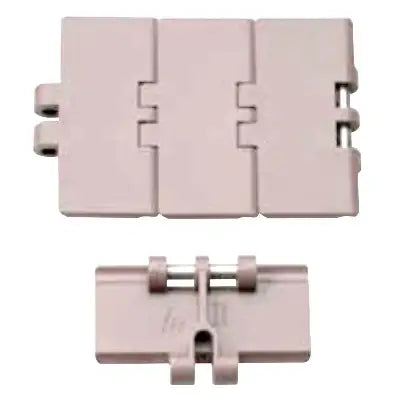

AR820 K325 Table Top Chain is a premium quality chain that is 3.25" wide, and is a natural color. The benefits of this chain is that it is manufactured using a glass filled homopolymer that is acid resistant and is used in applications where high chemical resistance is required. The AR820 K325 chain that we have is manufactured to be high strength, have great performance, and extreme durability. It uses 304-grade stainless steel pins and is standardly supplied as 10ft boxes (80-Links). We can supply this chain in other colors and configurations upon request, as well as with rubber top attachments on the chain.


AR820 K325 Chain Dimensions


  • Chain Size: AR820 K325
  • Pitch (P): 1.50"
  • Backflex Radius: 3.00"
  • Tensile Strength: 450 LBS
  • Width (W): 3.25"
  • Chain Material: PP-AR
  • Color: Natural
  • Pin Material: 304-SS
  • Dimension (E): 0.25"
  • Dimension (G): 1.75"
  • Dimension (H): 0.37"
  • Dimension (L): 0.28"
  • Dimension (Q): 1.63"
  • Dimension (T): 0.16"
  • Chain Weight: 0.57 LBS/ FT


Besides the AR820 K325 table top chain, we also have a full line of 820 series sprockets available from stock. The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.

Stock 820 Sprocket Size Chart
Sprocket Type Tooth Count Overall Diameter
Solid 820-Z19 19 4.61"
Solid 820-Z21 21 5.12"
Solid 820-Z23 23 5.59"
Solid 820-Z25 25 6.10"
Solid 820-Z27 27 6.57"
Solid 820-Z29 29 7.05"
Solid 820-Z31 31 7.56"
Split 820-Z19 19 4.61"
Split 820-Z21 21 5.12"
Split 820-Z23 23 5.59"
Split 820-Z25 25 6.10"



In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on AR820 K325 chain, sprockets, or other products please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!



Feature

  • High Quality Table Top chain
  • Self Lubricating
  • Interchangeable With Other Brands
  • Supplied As 10ft Lengths
Featured image
  • Chain Size: AR820 K325
  • Pitch (P): 1.50"
  • Backflex Radius: 3.00"
  • Tensile Strength: 450 LBS
  • Width (W): 3.25"
  • Chain Material: PP-AR
  • Color: Natural
  • Pin Material: 304-SS
  • Dimension (E): 0.25"
  • Dimension (G): 1.75"
  • Dimension (H): 0.37"
  • Dimension (L): 0.28"
  • Dimension (Q): 1.63"
  • Dimension (T): 0.16"
  • Chain Weight: 0.57 LBS/ FT
