A1088 Chain (Hollow Pin)

A1088 Chain (Hollow Pin)

Note: Custom Cut to Length Chain Also Available
Product Code: A1088-CHAIN
View full details
Description
Specification
A1088 chain is a hollow pin roller chain that is manufactured to American Standards. Hollow pin roller chains offer great versatility due to the ability to insert cross rods into the chain without chain disassembly required. This A1088 chain is manufactured using high quality, precision, and heat-treated components for maximum durability and working life. Besides A1088 chain we also have a full line of high quality sprockets, bearings, motors, reducers, sensors, and more. For additional information or to get pricing and availability please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: A1088
  • Pitch (P): 25.40 mm
  • Roller Diameter (Dr): 15.88 mm
  • Inside Width (W): 15.75 mm
  • Plate Height (H1): 24.13 mm
  • Plate Thickness: 3.15 mm
  • Roller Diameter (Dp): 11.18 mm
  • Hollow Pin Inside Diameter (Df): 8.05 mm
  • Riveted Pin Width (A1): 31.30 mm
  • Overall Connecting Link Width (B): 37.50 mm
  • Average Ultimate Strength: 54.95 kN
  • Average Chain Weight: 2.27 Kg/m

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Chain
  • Supplied With One Connecting Link Per Box
  • Extremely High-Strength and Durable

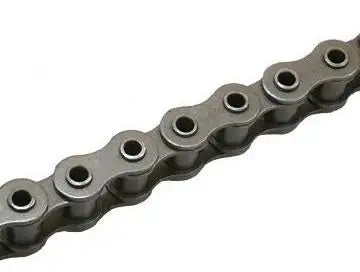

Featured image
  • Chain Size: A1088
  • Pitch (P): 25.40 mm
  • Roller Diameter (Dr): 15.88 mm
  • Inside Width (W): 15.75 mm
  • Plate Height (H1): 24.13 mm
  • Plate Thickness: 3.15 mm
  • Roller Diameter (Dp): 11.18 mm
  • Hollow Pin Inside Diameter (Df): 8.05 mm
  • Riveted Pin Width (A1): 31.30 mm
  • Overall Connecting Link Width (B): 37.50 mm
  • Average Ultimate Strength: 54.95 kN
  • Average Chain Weight: 2.27 Kg/m
