#80H-2 Heavy Double Strand Roller Chain - 10ft Box

80H-2 Heavy Double Strand Roller Chain
ECO-80H-2-10FT

Alternative Views:




Product Code: ECO-80H-2-10FT
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

This roller chain is ANSI size #80H-2 double strand heavy roller chain, it fully meets all ANSI standards. Economy Plus Series #80H-2 double strand heavy roller chain has been heat-treated & shot peened for increased working life, fatigue, and overall strength. This #80H-2 heavy roller chain is commonly found used in many industrial applications and agriculture applications. Economy Plus #80H-2 double strand heavy roller chain is available in 10ft boxes or larger footage reels including connecting links. The "H" designates that his chain has a slightly thicker side plate and is part of the heavy series of roller chains. Having the thicker side plate increases strength, shock load resistance, and fatigue. #80-2H double strand heavy roller chain can also be cut and assembled to specific lengths if needed.

  • Chain Size: #80-2H Heavy
  • Tensile Strength: 31,000lbs

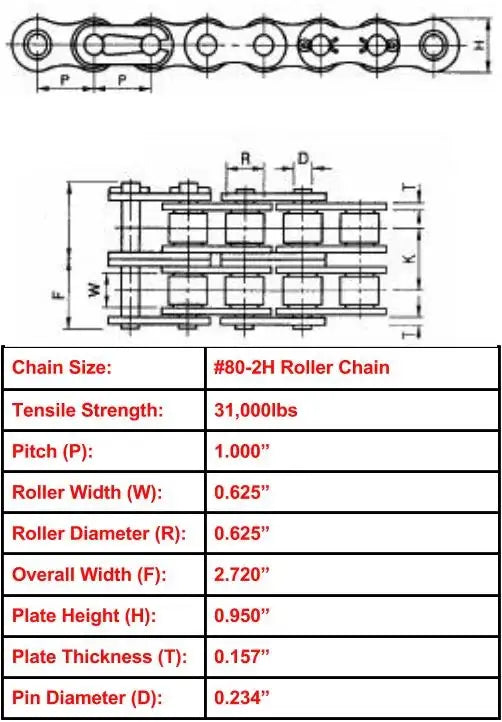

  • **NOTE: ALL DIMENSIONS ARE GIVEN IN INCHES**
  • Pitch (P): 1.000
  • Roller Width (W): 0.625
  • Roller Diameter (R): 0.625
  • Overall Chain Width (F): 2.720
  • Link Plate Height (H): 0.950
  • Link Plate Thickness (T): 0.157
  • Pin Diameter (D): 0.234
  • Specifications Met: ANSI Standards

Phone: (407) 347-3519
Email:
sales@usarollerchain.com

Click Here To See Our Other Products!
About Us
Features
    • Size: #80-2H Heavy Double Strand Roller Chain
    • Economy Plus Quality
    • Tensile Strength: 31,000lbs
    • Constructed of Hardened Steel For Increased Strength & Performance
    • Has Solid Rollers For Increased Strength, Performance, & Overall Durability
    • Fully Meets All ANSI Standards
