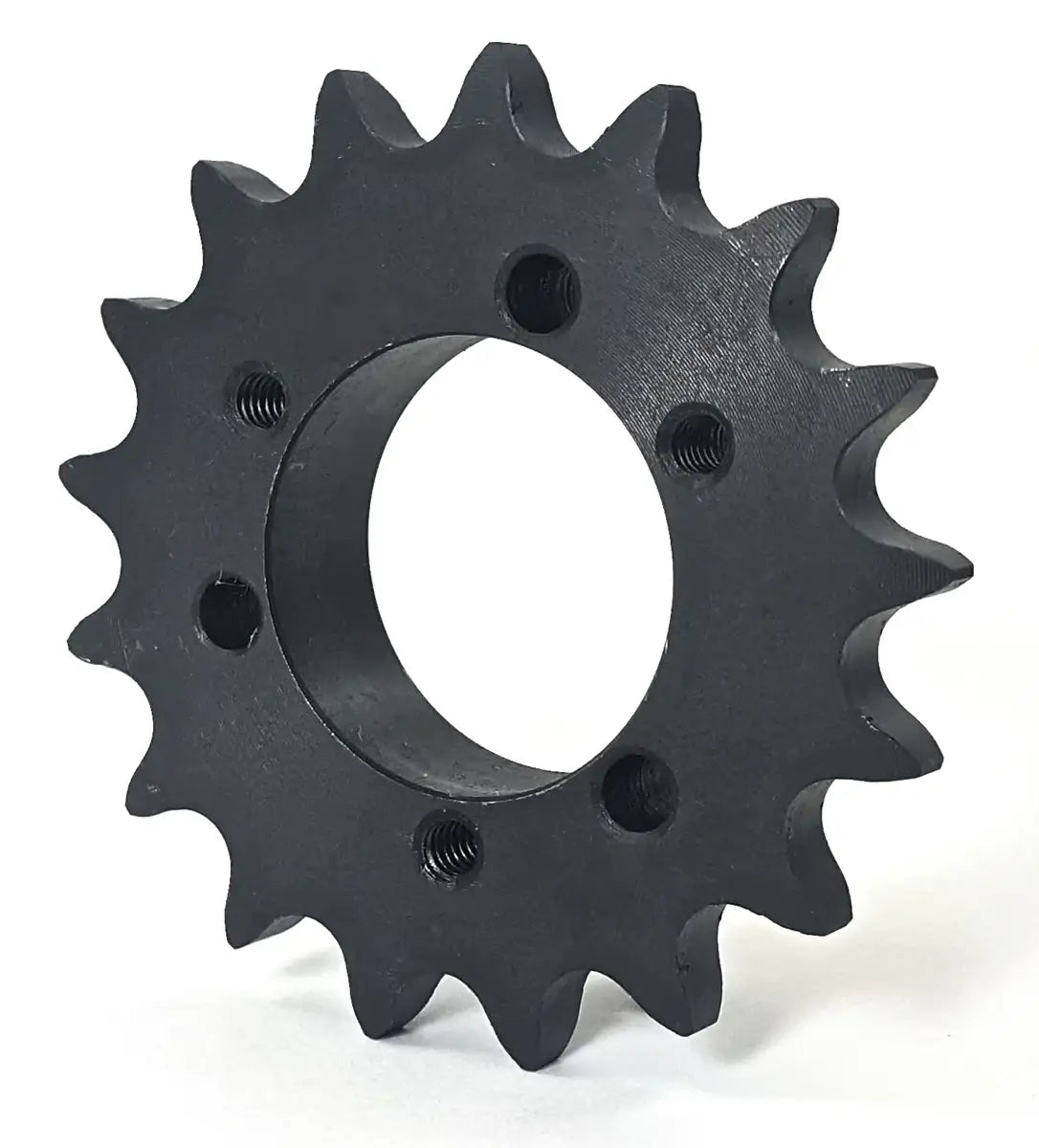

Premium 60JA12 Sprocket
Premium 60JA12 Sprocket
Note:
Custom Cut to Length Chain Also Available
Regular price
$17.50
$17.50
Unit price
per
In Stock
On Sale
Sold out
Product Code: 60JA12-SPROCKET
In Stock
Couldn't load pickup availability
Other Customers Viewed
This 60JA12 sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a JA bushing. Sprockets that have hardened teeth last longer, perform better, and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early corrosion. 60JA12 sprockets are manufactured to accept a JA type QD bushing which, we also stock with a wide range of bore sizes. Additionally we offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: 60JA12
- Tooth Count: 12
- Bushing Type: JA
- Outside Diameter: 3.250"
- Pitch Diameter: 2.898"
- Sprocket Type: B
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 35/64"
- Dimension (G): 11/64"
- Dimension (X): 5/8"
- Dimension (T): 0.459"
- Bushing Weight: 0.9 LBS
- Sprocket Weight: 0.60 LBS
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Feature
- Premium Quality Sprocket
- Has Hardened Teeth
- Manufactured Using High-Quality Steel
- Fully Meets ANSI Standards
- Black Oxide Coated For Corrosion Resistance
- Directly Interchanges With Other Manufactures
- Extremely Durable Construction With High-Performance
- Sprocket Size: 60JA12
- Tooth Count: 12
- Bushing Type: JA
- Outside Diameter: 3.250"
- Pitch Diameter: 2.898"
- Sprocket Type: B
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 35/64"
- Dimension (G): 11/64"
- Dimension (X): 5/8"
- Dimension (T): 0.459"
- Bushing Weight: 0.9 LBS
- Sprocket Weight: 0.60 LBS
