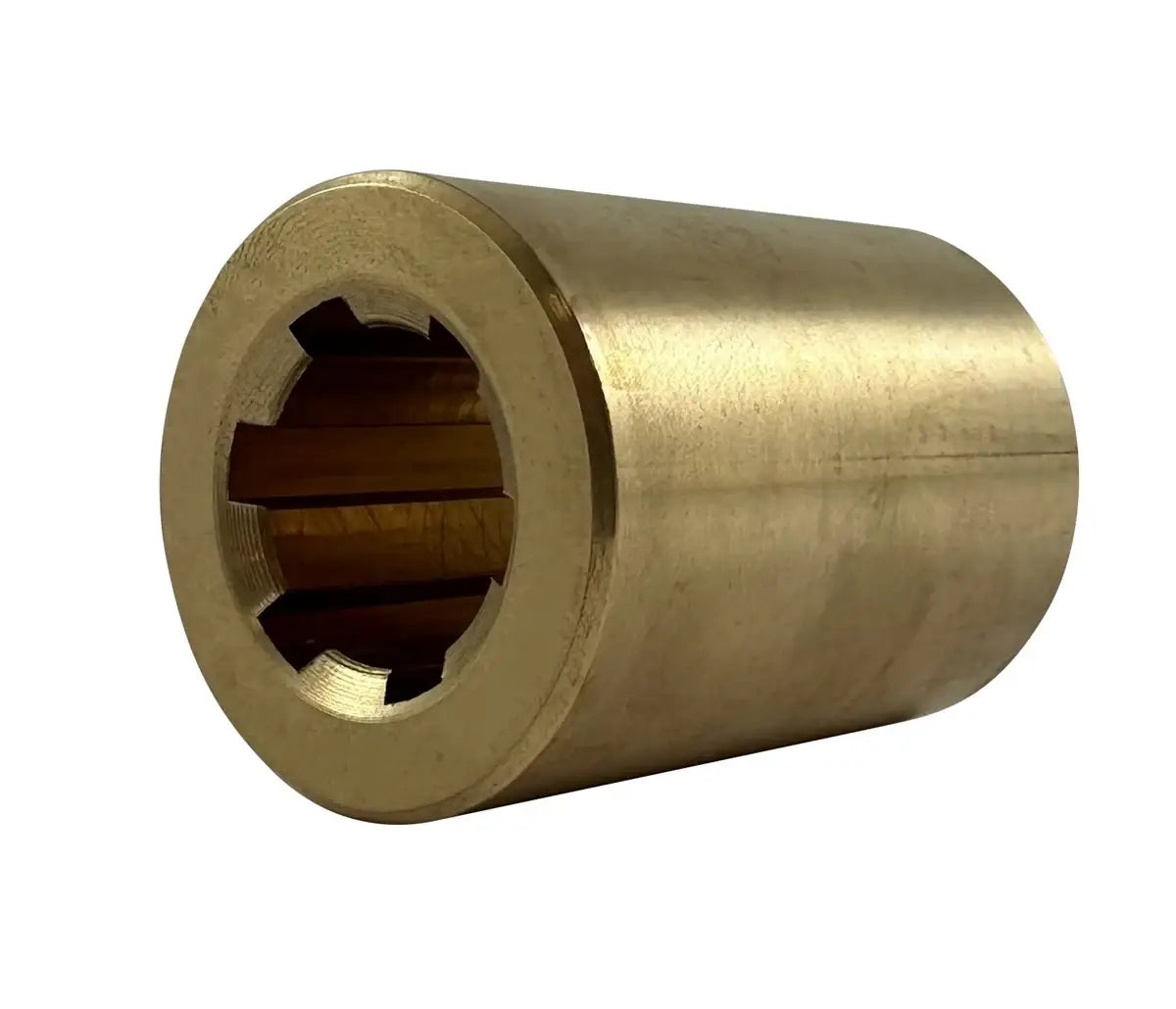

6 Spline Hub for 34mm Splined Shaft - Brass

Alternative Views:

Our Price: $279.99

Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64835900-HUB

Qty:

Description

Technical Specs

Our top-quality 34mm spline hub, featuring 6 splines, is precision-machined from premium red brass, offering excellent resistance to corrosion and a wide operating temperature range. Designed to DIN ISO 14 standards, this 6-spline hub for 34mm splined shafts ensures superb fitment and compatibility with other brands. Spline hubs are used on splined shafts for various purposes, such as coupling two shafts or providing a mounting surface. For more information or to request a quote on our premium brass 34mm splined shaft, please contact our customer service team, and we will be happy to assist you!

34mm Splined Shaft Hub Dimensions

Part Number: 64835900
Material: Red Brass
Profile Description: 28 X 34
Number of Keyways: 6
Dimension (D): 34mm
Dimension (d): 28mm
Dimension (b): 7mm
Dimension (A): 60mm
Length: 60mm
Weight: 0.87KG
