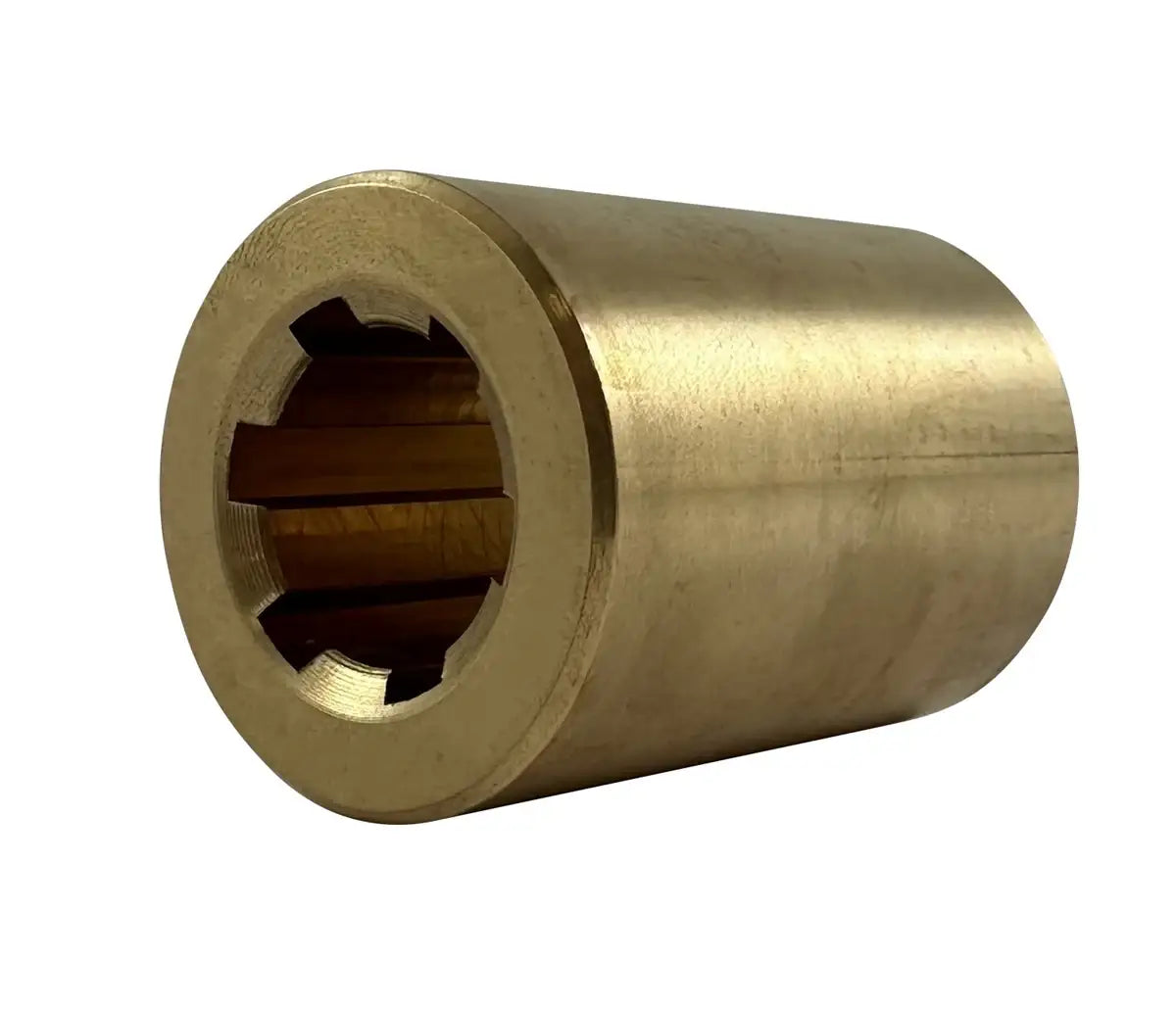

6 Spline Hub for 28mm Splined Shaft - Brass
6-spline-hub-for-28mm-splined-shaft-brass

Alternative Views:
Our Price: $214.99


Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64835300-HUB
Qty:

Description Technical Specs

Our premium 28mm spline hub, featuring 6 splines, is precisely machined from high-quality red brass, offering superb resistance to corrosion and a broad operating temperature range. Crafted to DIN ISO 14 standards, this 6-spline hub for 28mm splined shafts ensures excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various purposes, such as coupling two shafts or providing a mounting surface. For more information or to request a quote on our premium brass 28mm splined shaft, please contact our customer service team, and we will be happy to assist you!

28mm Splined Shaft Hub Dimensions

Splined Shaft Hub
  • Part Number: 64835300
  • Material: Red Brass
  • Profile Description: 23 X 28
  • Number of Keyways: 6
  • Dimension (D): 28mm
  • Dimension (d): 25mm
  • Dimension (b): 6mm
  • Dimension (A): 50mm
  • Length: 55mm
  • Weight: 0.54KG
Features
    • Precision Made from Red Brass
    • Made for 28mm Splined Shafting
    • Conforms to DIN ISO 14 Standard
