Premium #50 Straight Sidebar Roller Chain - 10ft Box
Premium #50 Straight Sidebar Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
Product Code: PREMIUM-C50-10FT
Couldn't load pickup availability
Other Customers Viewed
Premium C50 Straight Sidebar Roller Chain

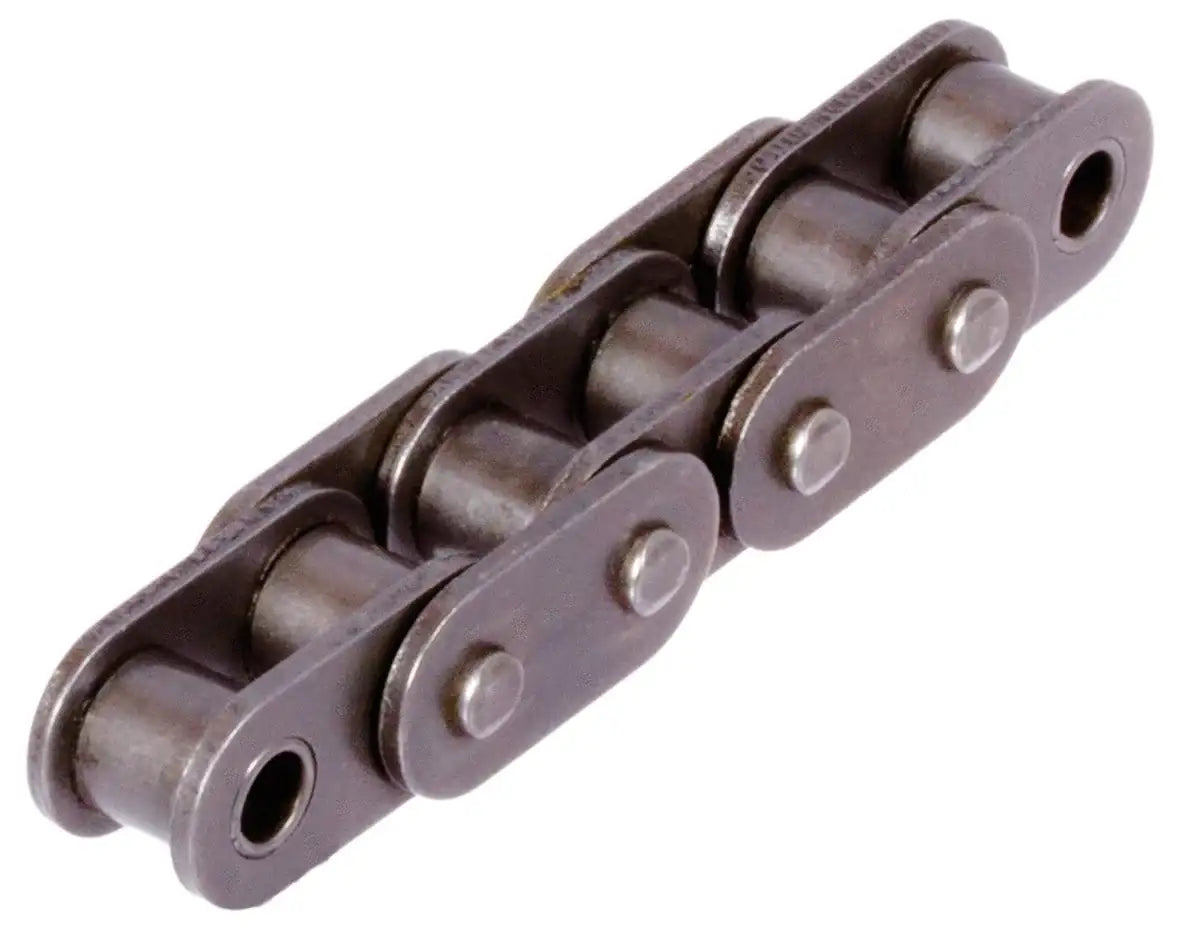

This Premium #50 straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. What separates this chain from the others is that this chain has solid roller and solid bushing which greatly increases performance and strength. This chain has also been shot peened and manufactured using high quality carbon steel making this chain a premium quality roller chain. This chain offers maximum strength, wear life, and performance. This chain can run on ANSI #50 standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box or on 50ft reels, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. If you have any questions or are in need of a custom length please contact us.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
This Premium #50 straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. What separates this chain from the others is that this chain has solid roller and solid bushing which greatly increases performance and strength. This chain has also been shot peened and manufactured using high quality carbon steel making this chain a premium quality roller chain. This chain offers maximum strength, wear life, and performance. This chain can run on ANSI #50 standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box or on 50ft reels, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. If you have any questions or are in need of a custom length please contact us.
Dimensions:
Chain Size: #50 Straight Sidebar Roller Chain Tensile Strength: 6,930lbs Pitch (P): 0.625" Roller Width (W): 0.375" Roller Diameter (R): 0.400" Plate Height (H): 0.545" Plate Thickness (T): 0.080" Pin Diameter (D): 0.200" Overall Width (F): 0.802" Weight Per Foot: 0.771 lbs/FT
Email:
Feature
- Size: #50 Premium Straight Sidebar Roller Chain
- Ultimate Strength: 6,930lbs
- Heat Treated For Increased Fatigue
- Solid Bushings & Rollers For Smooth Operation and Increased Strength and Working Life
- Has Maximum Strength & Longest Working Life
- Straight Sidebars Increase Strength, Working Life, and Fatigue
- Runs On Standard Sprockets
- High Strength & Premium Quality
Chain Size: #50 Straight Sidebar Roller Chain Tensile Strength: 6,930lbs **Note: All Dimensions Are in Inches** Pitch (P): 0.625 Roller Width (W): 0.375 Roller Diameter (R): 0.400 Plate Height (H): 0.545 Plate Thickness (T): 0.080 Pin Diameter (D): 0.200 Overall Width (F): 0.802 Weight Per Foot: 0.771 lbs/FT
