455 Pintle Chain With F2 Attachments Every Pitch
455 Pintle Chain With F2 Attachments Every Pitch
455 Pintle Chain With F2 Attachments Every Pitch

Alternative Views:


Availability: Normally In Stock
Product Code: 455-F2-CHAIN
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

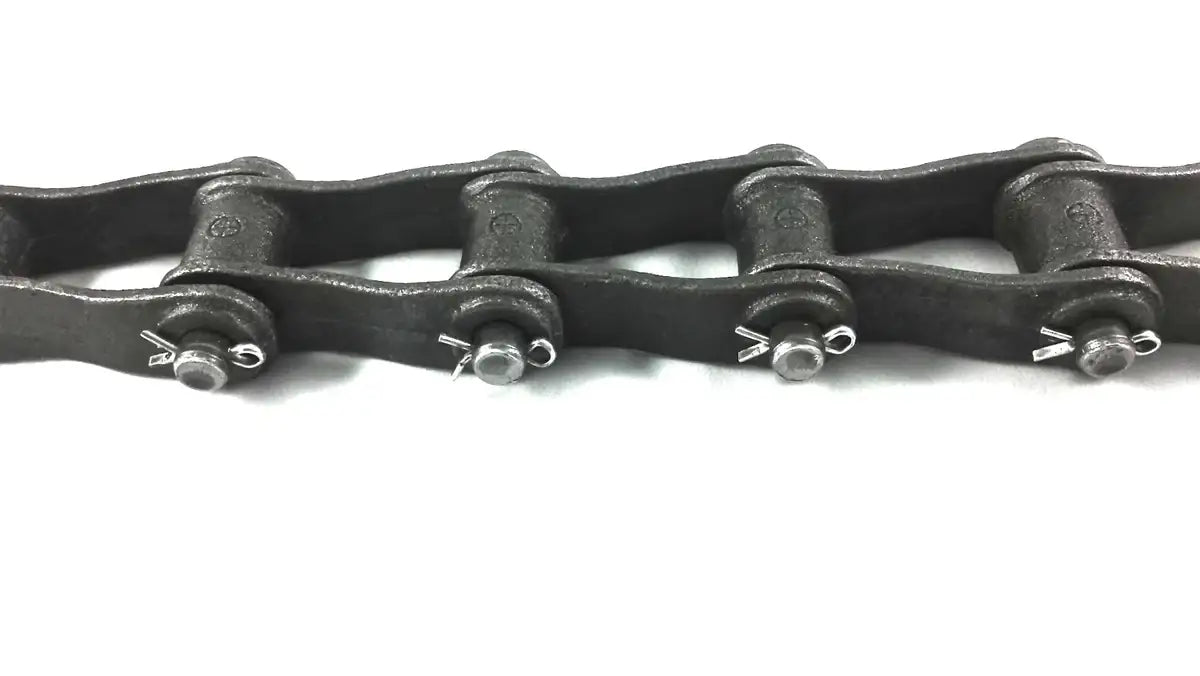

This 455 pintle chain has F-2 attachments every link and is supplied as cottered construction. Additionally, this 455 pintle chain is manufactured using high quality components such as heat-treated carbon steel pins to drastically improve performance, working life, and durability. To get a quote on 455 pintle chain with F2 attachments every link or 455 chain sprockets please contact us.

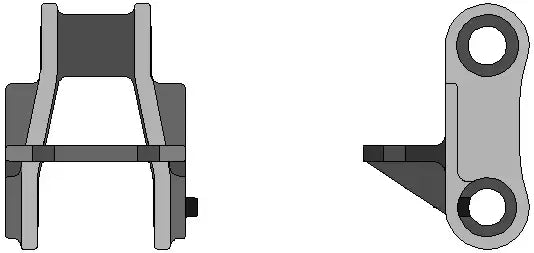

Dimensions:

  • Chain Number: 455 Chain With F2 Attachments
  • Pitch: 1.630"
  • Bold Diameter (D): 0.19"
  • Hole Diameter (D): 0.22"
  • Dimension (J): 1.25"
  • Dimension (K): 0.62"
  • Dimension (M): 1.06"
  • Dimension (N): 0.94"
  • Dimension (P): 0.81"
  • Dimension (T): 0.16"
  • Dimension (W): 1.81"
  • Weight Per Foot: 2.7 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • High Quality Pintle Chain
    • Supplied As Cottered Construction
    • Riveted Construction Available
    • Features Carbon Steel Pins
    • Heat-Treated Components
    • Stainless Steel Cotters Available

Accessories
455 Pin & Cotter
455 Pin & Cotter
