Dimensions:

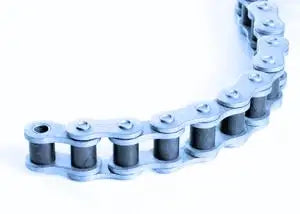

- Chain Size: #41 Coated Roller Chain
- Tensile Strength: 2,000lbs

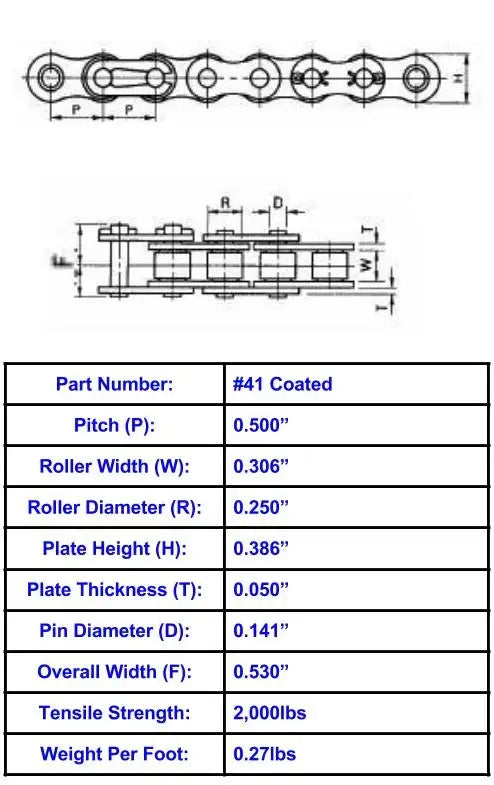

- **Note: All Dimensions Are in Inches**
- Pitch (P): 0.500
- Roller Width (W): 0.306
- Roller Diameter (R): 0.250
- Plate Height (H): 0.386
- Plate Thickness (T): 0.050
- Pin Diameter (D): 0.1410
- Overall Width (F): 0.530
- Email: sales@usarollerchain.com
- Phone: (407) 347-3519
Feature
- Size: #41 Coated Roller Chain
- Tensile Strength: 2,000lbs
- Highly Resistant To Corrosion
- Heat Treated For Higher Strength & Durability
- Fully Meets All ANSI Standards
- Supplied in a 10ft Box Including One Connecting Link

- Chain Size: #41 Coated Roller Chain
- Tensile Strength: 2,000lbs
- **Note: All Dimensions Are in Inches**
- Pitch (P): 0.500
- Roller Width (W): 0.306
- Roller Diameter (R): 0.250
- Plate Height (H): 0.386
- Plate Thickness (T): 0.050
- Pin Diameter (D): 0.1410
- Overall Width (F): 0.530
