Premium #40 Low Noise Roller Chain

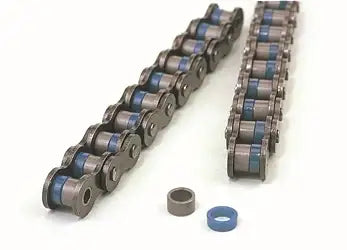

This #40 low noise roller chain is also commonly referred to as 40 silent roller chain, and fully meets all ANSI Standards. Low noise roller chains are in a growing state of demand due to the need for lower equipment noise. These chains are commonly found in printing, packing, engineering, and drive applications where a lower noise environment is needed. This roller chain achieves the low noise effect because of the two-piece roller construction of the chain, this greatly decreases the audible shock when the chain is engaging with the sprocket. #40 low noise roller chain produces a silencing effect as much as 10DB and is a high-performance premium quality roller chain. Something else that is notable about this chain is that it will run on standard #40 roller chain sprockets. For more information or to get a quote on super low noise roller chain please contact us and we will be happy to assist you!

Dimensions:

• Chain #: 40SLN
• Pitch (P): 0.500"
• Roller Link Width (W): 0.313"
• Roller Diameter (D1): 0.304"
• Roller Diameter (D2): 0.321"
• Pin Diameter (O): 0.156"
• Pin Length (E): 0.650"
• CL Pin Length (F): 0.693"
• Plate Thickness (T): 0.059"
• Plate Height (H): 0.472"
• Tensile Strength: 4,290 LBS
• Working Load Rating: 836 LBS
• Weight Per Foot: 0.396 LBS

Spring Style Rollers Also Available!




Noise Reduction Efficiency Chart:



Horse Power Rating Table:
