35SH42 Sprocket (QD Type)

35SH42 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$59.99
$59.99
In Stock
On Sale Sold out
Product Code: 35SH42-SPROCKET
In Stock

Login to Request a Quote

Other Customers Viewed
35 Roller Chain | ANSI 35 Chain 10ft Box
35 Roller Chain | ANSI 35 Chain 10ft Box
Login
General Duty Plus #35 Roller Chain - 10ft Box
General Duty Plus #35 Roller Chain - 10ft Box
$44.99
Login
Premium #35 Roller Chain - 10ft Box | Premier Series Chain
Premium #35 Roller Chain - 10ft Box | Premier Series Chain
$69.99
Login
View full details
Description
Specification

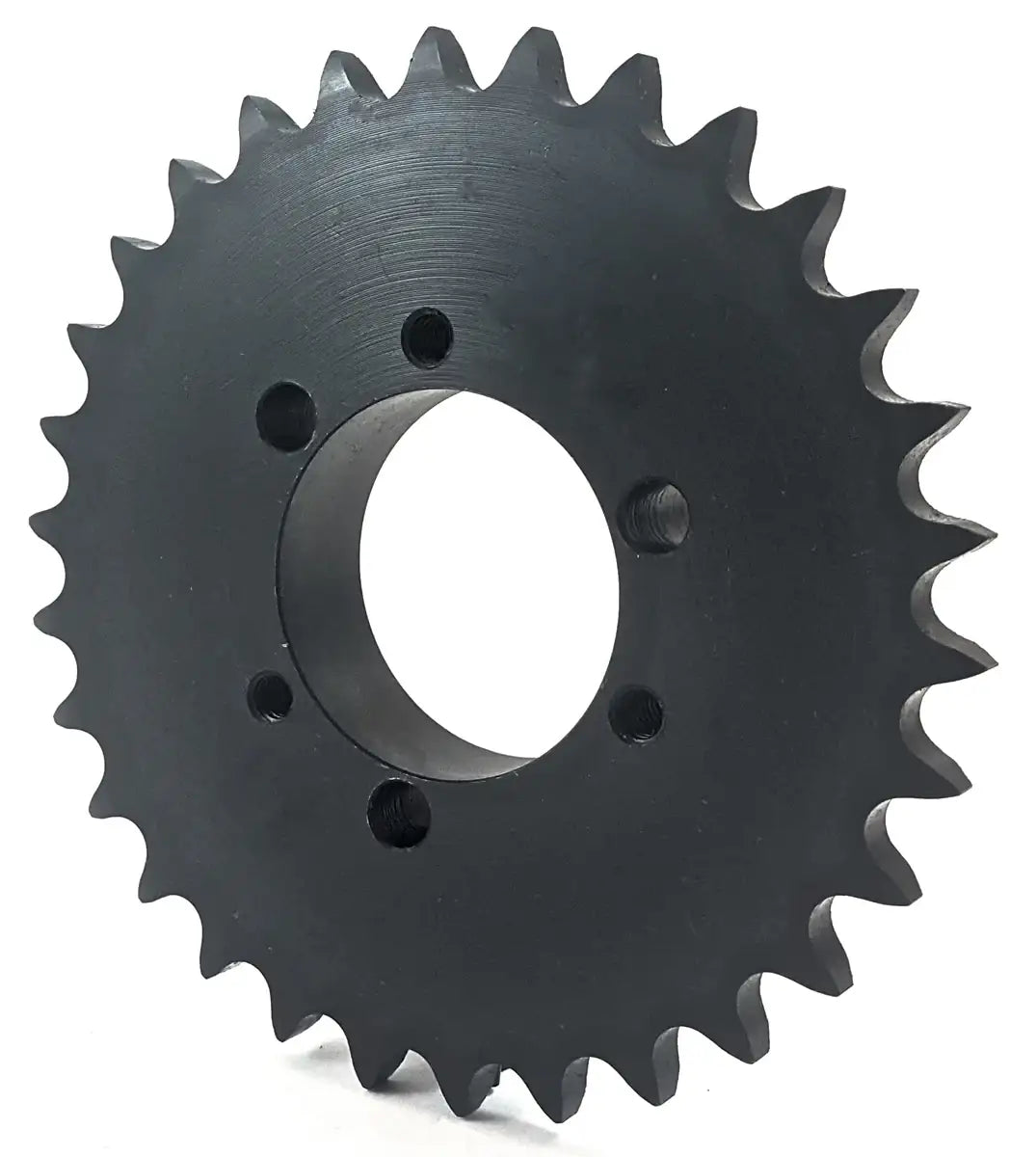

This 35SH42 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a SH bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #35 roller chain and sprocket which prevents premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 35SH42 sprockets are bored to accept a SH size QD bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices.For more information or large inquiry request please contact us and we will be happy to assist you.

35SH42 Sprocket Dimensions:
  • Sprocket Size: 35SH42
  • Bushing Type: SH
  • Outside Diameter: 5.230"
  • Pitch Diameter: 5.018"
  • Dimension (L1): 1-7/16"
  • Dimension (L2): 1-7/16"
  • Dimension (C): 2-11/16"
  • Dimension (Y): 1-5/64"
  • Dimension (G): 41/64"
  • Dimension (X): 13/16"
  • Dimension (T): 0.168"
  • Sprocket Weight: 1.26 LBS
  • Weight With Bushing: 2.26 LBS
Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Manufactured Out Of High-Quality Steel
  • Great Performance and Durability
  • Black Oxide Coated
  • Fully Meets ANSI Standards
Featured image
  • Sprocket Size: 35SH42
  • Bushing Type: SH
  • Outside Diameter: 5.230"
  • Pitch Diameter: 5.018"
  • Dimension (L1): 1-7/16"
  • Dimension (L2): 1-7/16"
  • Dimension (C): 2-11/16"
  • Dimension (Y): 1-5/64"
  • Dimension (G): 41/64"
  • Dimension (X): 13/16"
  • Dimension (T): 0.168"
  • Sprocket Weight: 1.26 LBS
  • Weight With Bushing: 2.26 LBS
