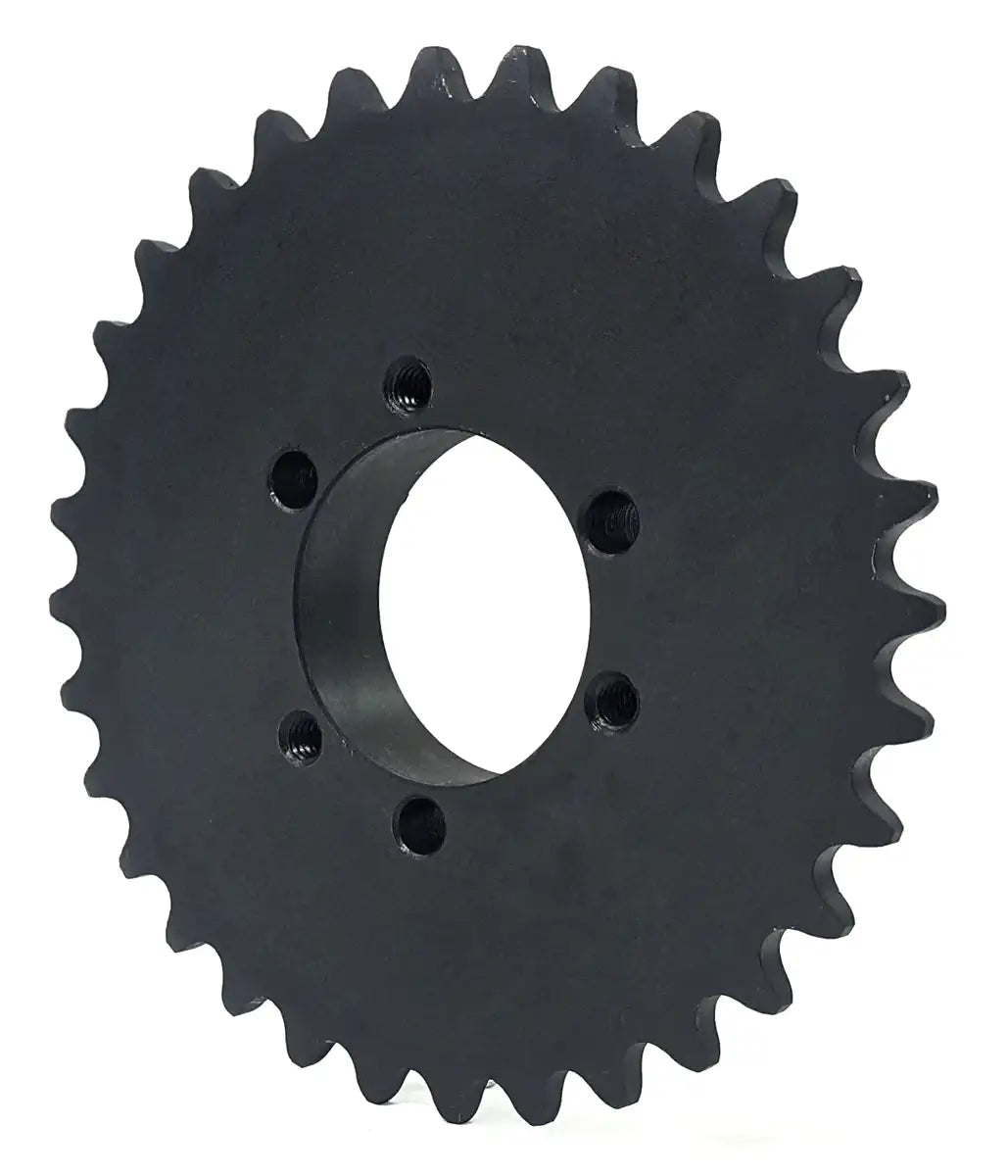

35JA35 Sprocket (QD Type)
35JA35 Sprocket (QD Type)
Note:
Custom Cut to Length Chain Also Available
Regular price
$43.00
$43.00
Unit price
per
In Stock
On Sale
Sold out
Product Code: 35JA35-SPROCKET
In Stock
Couldn't load pickup availability
Other Customers Viewed
This 35JA35 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a JA bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #35 roller chain and sprocket which prevents premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 35JA35 sprockets are bored to accept a JA size QD bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
35JA35 Sprocket Dimensions:
- Sprocket Size: 35JA35
- Bushing Type: JA
- Outside Diameter: 4.390"
- Pitch Diameter: 4.183"
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 53/64"
- Dimension (G): 29/64"
- Dimension (X): 5/8"
- Dimension (T): 0.168"
- Sprocket Weight: 1.04 LBS
- Weight With Bushing: 1.94 LBS
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Feature
- Manufactured Out Of High-Quality Steel
- Great Performance and Durability
- Black Oxide Coated
- Fully Meets ANSI Standards
- Sprocket Size: 35JA35
- Bushing Type: JA
- Outside Diameter: 4.390"
- Pitch Diameter: 4.183"
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 53/64"
- Dimension (G): 29/64"
- Dimension (X): 5/8"
- Dimension (T): 0.168"
- Sprocket Weight: 1.04 LBS
- Weight With Bushing: 1.94 LBS
