35JA28 Sprocket (QD Type)
35JA28 Sprocket (QD Type)
Note:
Custom Cut to Length Chain Also Available
Regular price
$18.68
$18.68
Unit price
per
In Stock
On Sale
Sold out
Product Code: 35JA28-SPROCKET
In Stock
Couldn't load pickup availability
Other Customers Viewed

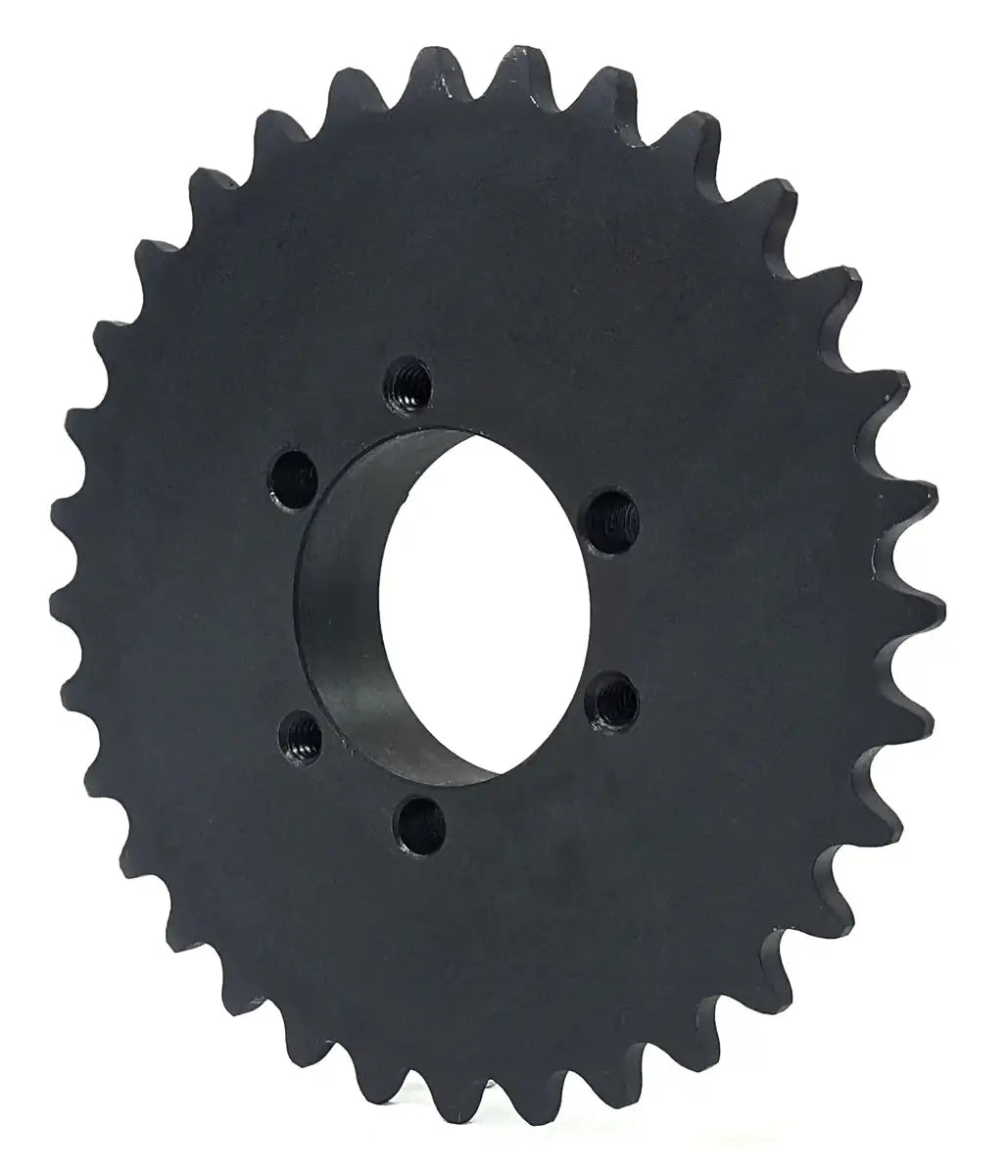

This 35JA28 sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a JA bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #35 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 35JA28 sprockets are bored to accept a JA size QD bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices.For more information or large inquiry request please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
35JA28 Sprocket Dimensions:
- Sprocket Size: 35JA28
- Bushing Type: JA
- Outside Diameter: 3.550"
- Pitch Diameter: 3.349"
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 53/64"
- Dimension (G): 29/64"
- Dimension (X): 5/8"
- Dimension (T): 0.168"
- Sprocket Weight: 0.52 LBS
- Weight With Bushing: 1.42 LBS
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Feature
- Manufactured Out Of High-Quality Steel
- Great Performance and Durability
- Black Oxide Coated
- Fully Meets ANSI Standards
- Sprocket Size: 35JA28
- Bushing Type: JA
- Outside Diameter: 3.550"
- Pitch Diameter: 3.349"
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 53/64"
- Dimension (G): 29/64"
- Dimension (X): 5/8"
- Dimension (T): 0.168"
- Sprocket Weight: 0.52 LBS
- Weight With Bushing: 1.42 LBS
