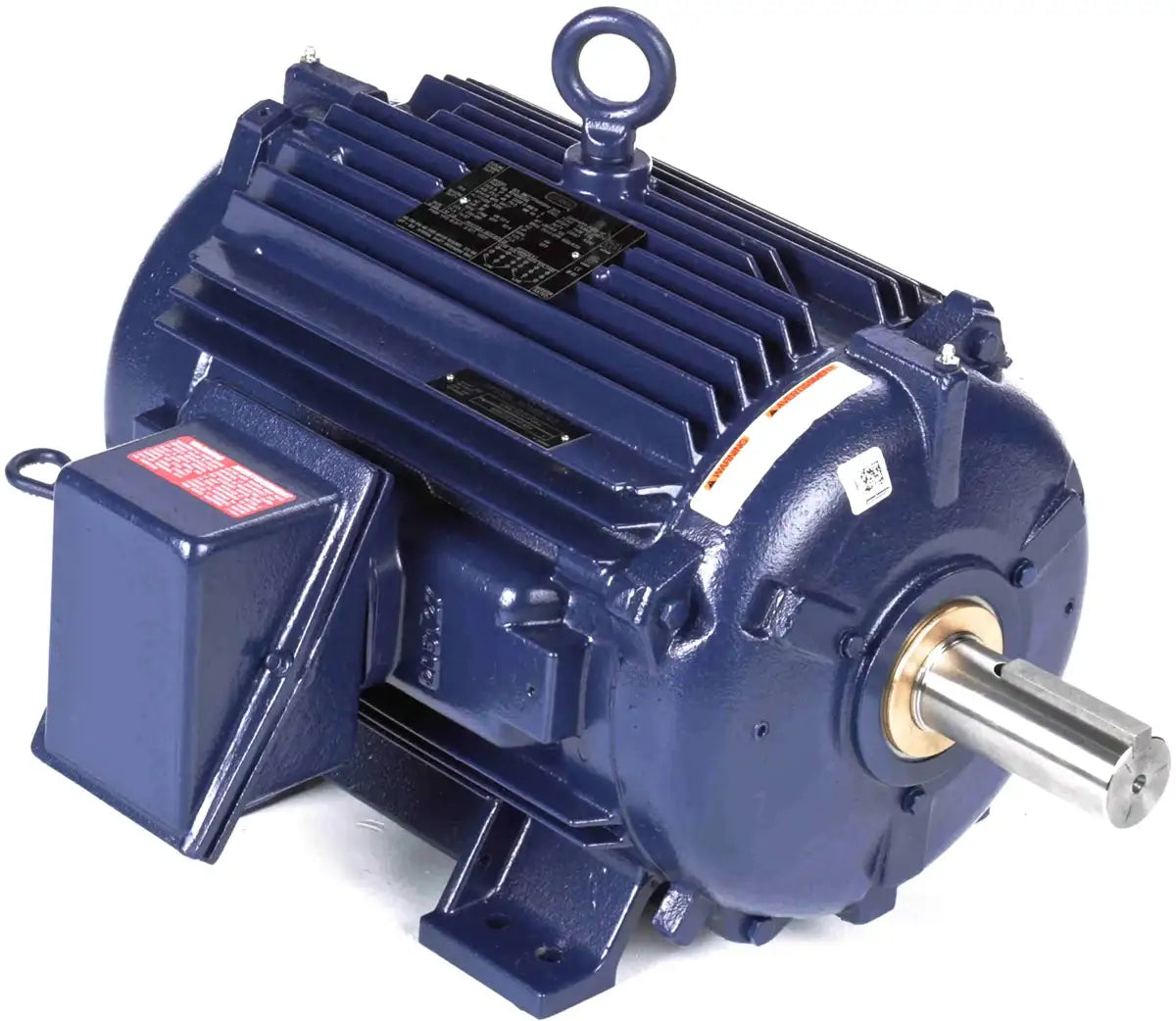

Leeson Three-Phase 40 HP Explosion Proof Electric Motor - 1800 RPM, 324TC Frame, C-Face With Rigid Base
324TTGS1603-electric-motor
324TTGS1603-electric-motor



Product Code: 324TTGS1603-MOTOR
Get a Quote
Call to Order 407-347-3519

Description

Leeson premium efficiency 324TTGS1603 40 HP explosion proof electric motor is a three phase, 1800 RPM 324TC frame size all cast iron motor with a rigid base C-Face. This hazardous application motor is rated for Division I and Division II, class I, groups C and D, as well as Class II Groups F and G. Being manufactured in accordance to National Electrical Manufacturers Association (NEMA) standard means that this electric motor will drop-in replace most of the common brands out there, and this motor even includes an explosion proof conduit box. More specifically, Leeson motors use a premium double-shielded ball bearing, has an industry leading warrantee, and meets all UL as well as CSA Safety Requirements. The 324TTGS1603 (catalog # 825083.00) explosion proof motor has a T-Stat for overload protection for additional safety and ease of mind. When making a selection of an explosion proof motor it is important to select a motor that is approved for use in the specific class or group that defines the hazardous environment the motor will run in, refer to "Explosion Proof Motor Classification" on our main explosion proof motor main page for more information. For additional information or to get a quote on a Leeson Three-Phase 40 HP Explosion Proof Electric Motor, 1800 RPM 324TC frame size all cast iron motor with a rigid base C-Face please contact us and we will be happy to assist you.

Leeson 324TTGS1603 Explosion Proof Motor Specifications

  • Download - 324TTGS1603 Motor Connection
  • Download - 324TTGS1603 Motor Outline/ Drawing
  • Download - 324TTGS1603 Motor Certification
  • Download - 324TTGS1603 Motor Performance
  • Download - 324TTGS1603 Motor Operation Manual
  • Download - 324TTGS1603 Motor Complete Data Pack

324TTGS1603 General Information

UPC
Weight
Package Length
Package Width
Package Height





324TTGS1603 Nameplate Information

Output HP
Frequency
Current
Service Factor
Efficiency





Duty Design Code Frame Thermal Protection Drive End Bearing Size





UL CE Hazardous Location Output KW Voltage





Speed Phase Power Factor Insulation Class KVA Code





Enclosure Ambient Temperature Opp Drive End Bearing Size CSA IP Code





Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C

324TTGS1603 Technical Information

Electrical Type Poles Resistance Main Motor Opperation




Opp Drive End Bearing Shaft Type Frame Length Shaft Extension




Starting Method Rotation Mounting Drive End Bearing




Frame Material Overall Length Shaft Diameter Assembly/ Box Mounting





324TTGS1603 Speed Characteristics

Curve-Point Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (HP)




























324TTGS1603 Load Characteristics

% of Rated Load 0% 25% 50% 75% 100% 125% 150% 175% 200%
Current (Amps)








Rated Output (KW)








Efficiency (%)








Power Factor (%)








Speed (RPM)








Temp. Rise @ FL








Torque (ft-lbs)












Explosion Proof Motors | Hazardous Application Electric Motors
Features
    • Premium Quality Explosion Proof Motor
    • Meets All UL as Well as CSA Safety Requirements
    • Uses Precision Double Shielded Bearings

Share your knowledge of this product. Be the first to write a review »
