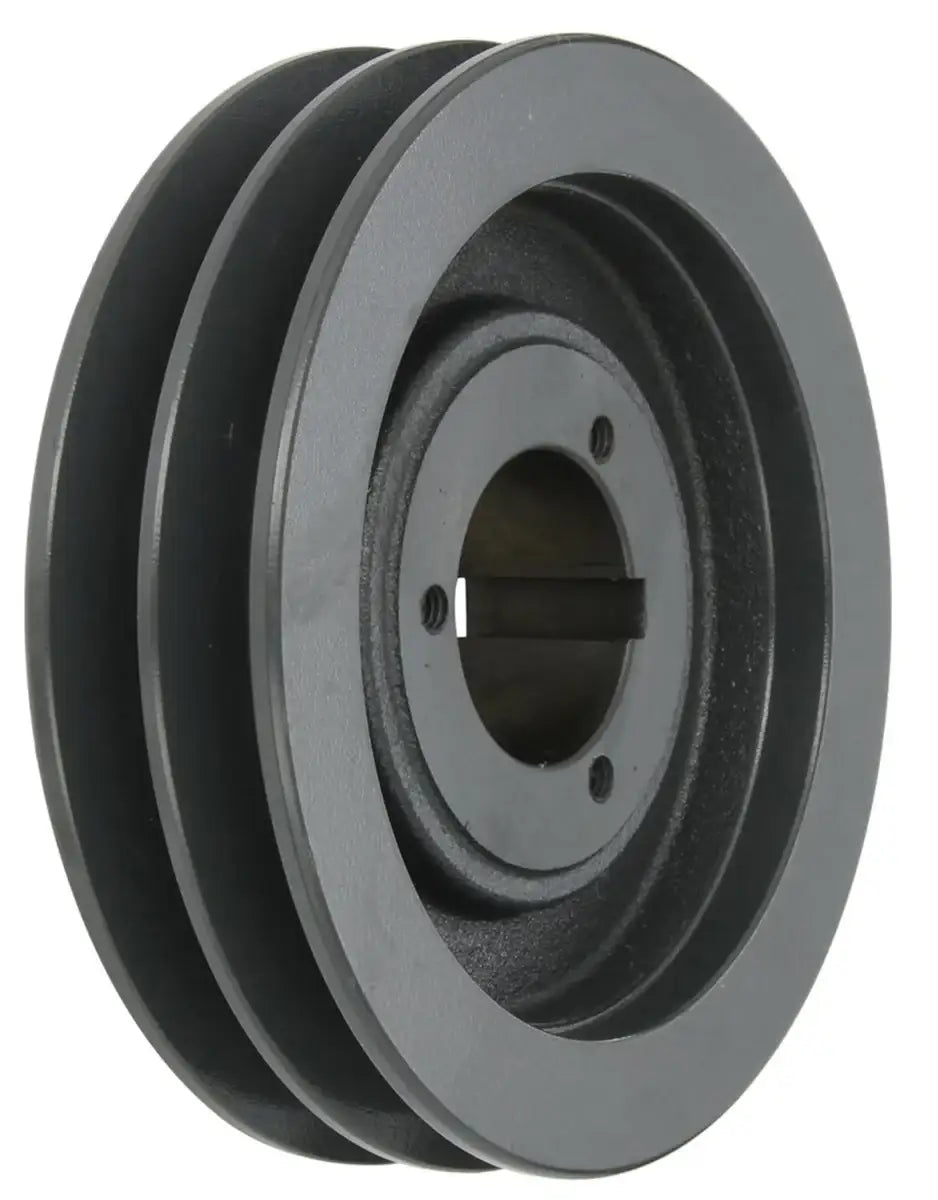

2TB136 Pulley Dimensions

- Size: 2TB136
- Bushing Type Needed: Q1
- Pitch Diameter (A/ 4L): 13.2"
- Pitch Diameter (B/ 5L): 13.6"
- Outside Diameter: 13.95"
- Type: 13
- Overall Width (O.L.): 2-25/32"
- Dimension (L): 2-1/2"
- Dimension (P): 3/4"
- Dimension (C): 0"
- Dimension (H): 4-1/8"
- Dimension (F): 1"
- Dimension (G): 3/4"
- Dimension (X): 1-3/4"
- Dimension (E): 9/32"
- Sheave Weight: 23.0 LBS
USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information on a double groove 2TB136 pulley, or to get pricing and availability on the accompanying belts/ Q1-bushings, please contact us and we will be happy to assist you.
Feature
- Premium Quality V-Belt Pulley
- Manufactured In Accordance With ARPM Standard IP20
- Corrosion Resistance
- High-Performance
- Extremely Durable

- Size: 2TB136
- Bushing Type Needed: Q1
- Pitch Diameter (A/ 4L): 13.2"
- Pitch Diameter (B/ 5L): 13.6"
- Outside Diameter: 13.95"
- Type: 13
- Overall Width (O.L.): 2-25/32"
- Dimension (L): 2-1/2"
- Dimension (P): 3/4"
- Dimension (C): 0"
- Dimension (H): 4-1/8"
- Dimension (F): 1"
- Dimension (G): 3/4"
- Dimension (X): 1-3/4"
- Dimension (E): 9/32"
- Sheave Weight: 23.0 LBS
