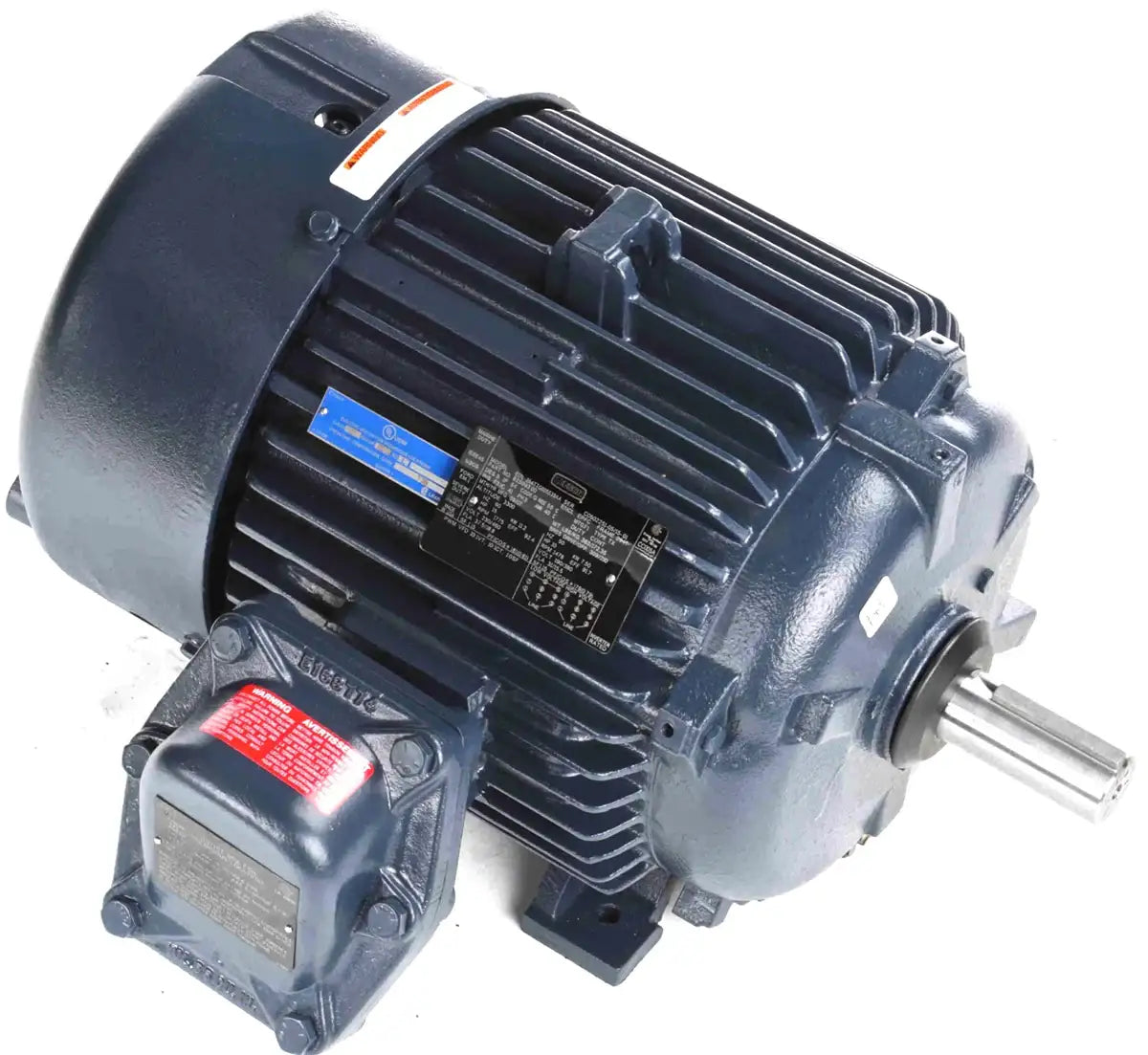

Leeson Three-Phase 20 HP Explosion Proof Electric Motor - 3600 RPM, 256T Frame | Rigid Base
256TTGS16514-electric-motor
256TTGS16514-electric-motor

Note: Image Differs From Actual Product


Product Code: 256TTGS16514-MOTOR
Get a Quote
Call to Order 407-347-3519

Description

Leeson premium efficiency 256TTGS16514 20 HP explosion proof electric motor is a three phase, 3600 RPM 256T frame size all cast iron rigid base motor. This hazardous application motor is rated for Division I and Division II, class I, groups C and D, as well as Class II Groups F and G. Being manufactured in accordance to National Electrical Manufacturers Association (NEMA) standard means that this electric motor will drop-in replace most of the common brands out there, and this motor even includes an explosion proof conduit box. More specifically, Leeson motors use a premium double-shielded ball bearing, has an industry leading warrantee, and meets all UL as well as CSA Safety Requirements. The 256TTGS16514 (catalog # 825094.00) explosion proof motor has a T-Stat for overload protection for additional safety and ease of mind. When making a selection of an explosion proof motor it is important to select a motor that is approved for use in the specific class or group that defines the hazardous environment the motor will run in, refer to "Explosion Proof Motor Classification" on our main explosion proof motor main page for more information. For additional information or to get a quote on a Leeson Three-Phase 20 HP Explosion Proof Electric Motor, 3600 RPM 256T frame size all cast iron rigid base motor please contact us and we will be happy to assist you.

Leeson 256TTGS16514 Explosion Proof Motor Specifications

  • Download - 256TTGS16514 Motor Connection
  • Download - 256TTGS16514 Motor Outline/ Drawing
  • Download - 256TTGS16514 Motor Certification
  • Download - 256TTGS16514 Motor Performance
  • Download - 256TTGS16514 Motor Operation Manual
  • Download - 256TTGS16514 Motor Complete Data Pack
