Premier Series #240 Cottered Roller Chain - 10ft Box

Premium Quality #240 Cottered Roller Chain

Our Price: $2,939.99

Availability: Usually Ships Within 24 Hours
Product Code: PREMIUM-240-COT-10FT

Qty:

Description

Technical Specs

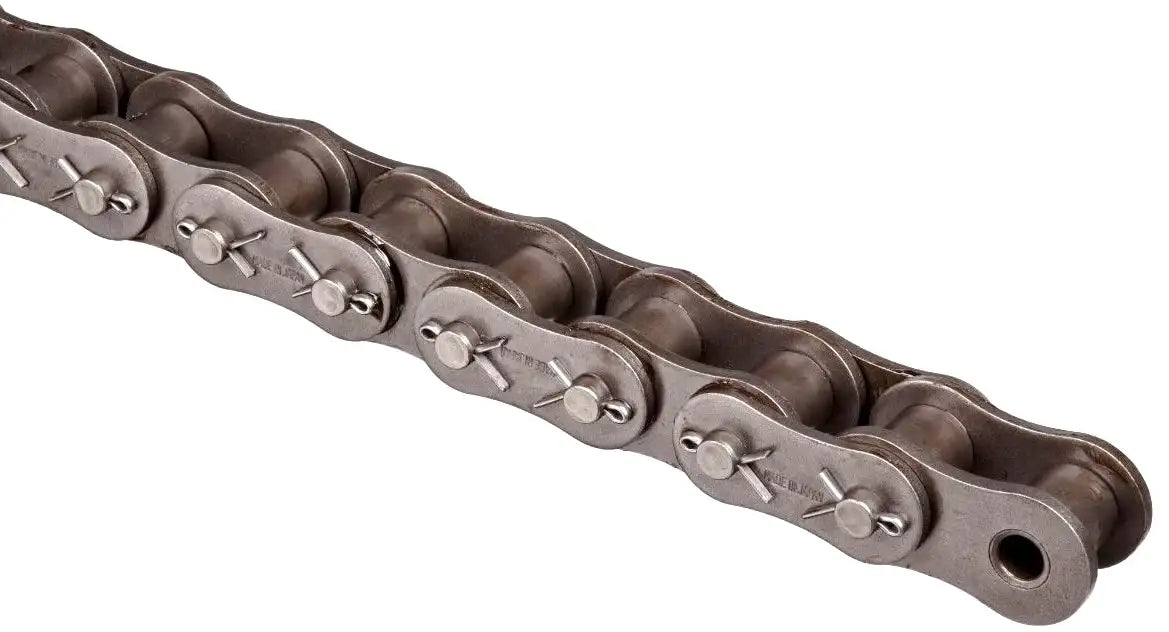

Premier Series #240 Cottered Roller Chain

This #240 Cottered Roller chain is a premium quality, high strength, and extremely durable roller chain. Premier Series #240 cottered roller chain supplies a high tensile strength of 154,000lbs, and a working load 22,220lbs. One of the most important features that make this chain last longer than others is that it features fully heat-treated solid bushings, which creates a high strength and long lasting precision bushing. It also features heat-treated, wide couture side plates that have been shot peened, this increases working load and the overall performance of the roller chain. Premier Series #240 cottered roller chain also features heat-treated, hardened pins. This increases the shock load rating, tensile strength, and overall durability of the roller chain. Another important feature of this roller chain is that it has heat-treated solid rollers, which increases the overall performance of the chain and the working life. Premier Series roller chains are engineered to be a high strength and durable roller chain with great performance and a long working life. This roller chain is commonly supplied, as 10ft boxes including one connecting link per box, but alternate lengths are available upon request. Cottered roller chain uses cotter pins instead of rivets, the benefit of this is that the chain is easier to install sections and eliminate the need of cutting the rivet pins. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation and keep you up and running. Another thing that extra connecting links and offset links are good for is making those miscellaneous repairs that need to be done to keep you in operation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. We also offer a wide range of attachments for this roller chain if needed. For additional information on the Premier Series #240 Cottered Roller chain or any of its accessories that we offer, please contact us and we will be happy to assist you.

Dimensions:

Chain Size: #240
Tensile Strength: 154,000lbs
Pitch (P): 3.000"
Roller Width (W): 1.875"
Roller Diameter (D): 1.875"
Link Plate Height (H): 2.850"
Link Plate Thickness (T): 0.375"
Pin Diameter (E): 0.937"
Specifications Met: ANSI Standards

Phone: (407) 347-3519
Email: sales@usarollerchain.com

USA Roller Chain

Features

- Premium Quality
- Tensile Strength: 154,000lbs
- Working Load: 22,220lbs
- Constructed of Premium Hardened Steel For Increased Strength & Performance
- Shot Peened For Increased Fatigue & Durability
- Pre-stretched For Higher Ware Resistance
- Solid Bushings & Rollers For Better Performance & Overall Operation
- Fully Meets All ANSI Standards
