• General Duty Plus Quality #240 Cottered Roller Chain
NaN -Infinity

General Duty Plus #240 Cottered Roller Chain - 10ft Box

General Duty Plus #240 Cottered Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$1,578.00
$1,578.00
In Stock
On Sale Sold out
Product Code: GDP-240-COT-10FT
In Stock

Login to Request a Quote

Other Customers Viewed
Spray On Chain Lube - 11oz Can
Spray On Chain Lube - 11oz Can
$54.99
Login
General Duty Plus #240 Roller Chain Connecting (Master) Link
General Duty Plus #240 Roller Chain Connecting (Master) Link
$64.99
Login
General Duty Plus #240 Roller Chain Offset Link
General Duty Plus #240 Roller Chain Offset Link
$149.99
Login
View full details
Description
Specification

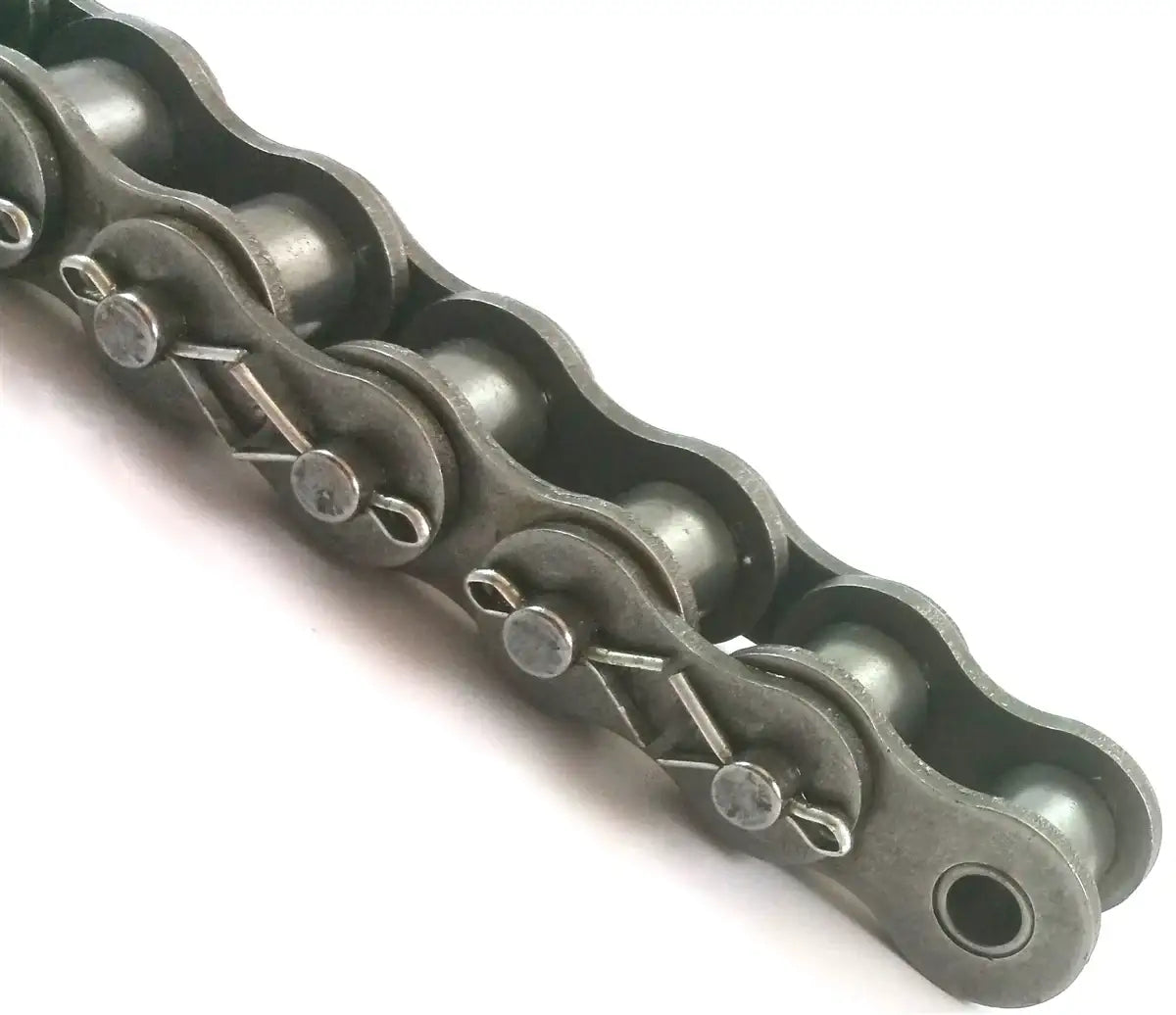

General Duty Plus #240 Cottered Roller Chain

This #240 cottered roller chain offers high strength, a long working life, and durability. General Duty Plus Series roller chains have shot peened and heat treated components that drastically increase the chains strength, working life, and overall performance. This #240 cottered roller chain has a tensile strength of 149,500lbs and is commonly supplied as 10ft boxes including one connecting link per box. But we also offer #240 cottered roller chain at alternate lengths per request. This chain uses cotter pins instead of rivets, the benefit of this is that the chain is easier to install sections and eliminate the need of cutting the rivet pins. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation and keep you up and running. Another thing that extra connecting links and offset links are good for is making those miscellaneous repairs that need to be done to keep you in operation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #240 Roller chain or any of its accessories that we offer, please contact us and we will be happy to assist you.

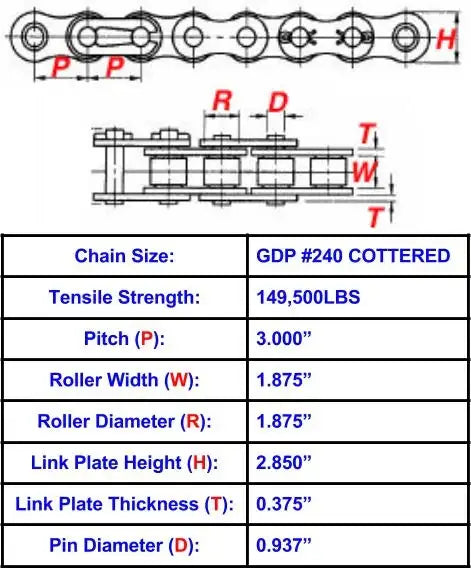

Dimensions:

  • Chain Size: #240
  • Tensile Strength: 149,500lbs
  • Pitch (P): 3.000"
  • Roller Width (W): 1.875"
  • Roller Diameter (D): 1.875"
  • Link Plate Height (H): 2.850"
  • Link Plate Thickness (T): 0.375"
  • Pin Diameter (E): 0.937"
  • Specifications Met: ANSI Standards

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality
  • Tensile Strength: 149,500lbs
  • Constructed of Hardened Steel For Increased Strength & Performance
  • Shot Peened For Increased Fatigue & Durability
  • Pre-stretched For Higher Ware Resistance
  • Solid Rollers For Better Performance & Overall Operation
  • Fully Meets All ANSI Standards
Featured image
  • Chain Size: #240
  • Tensile Strength: 149,500lbs
  • Pitch (P): 3.000"
  • Roller Width (W): 1.875"
  • Roller Diameter (D): 1.875"
  • Link Plate Height (H): 2.850"
  • Link Plate Thickness (T): 0.375"
  • Pin Diameter (E): 0.937"
  • Specifications Met: ANSI Standards
