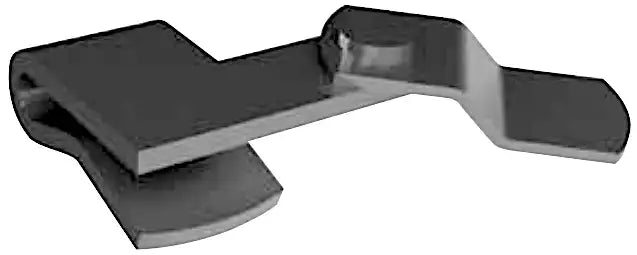

1SC Screw Conveyor Spring Cover Clamp - 325-0669

The 1SC screw conveyor spring cover clamp is commonly used to fasten flat or semi-flanged covers to the conveyor trough. They can be used in dust-tight applications because they have the capability to be placed over a gasket cover. These clamps are typically placed on 2ft 6-inch centers but if gasketed they need to be placed at 15-inch or closer centers depending on the application. For additional information or to get a quote on screw conveyor spring cover clamps contact our customer support team and we will be happy to assist you!

1SC Screw Conveyor Spring Cover Clamp Dimensions

• Size Code: 1SC
• Part #: 325-0669
• Dimension (A): 7/8"
• Dimension (B): 15/16"
• Dimension (C): 2-7/8"
• Dimension (D): 1-3/16"
• Dimension (E): 1-1/4"
• Dimension (F): 9/32"
• Dimension (G): 5/32"
• Dimension (H): 3/16"
• Weight: 0.34 LBS

Note:

The component above outlined in red is not included with this clamp if to include a bracket for welding to cover please advise the customer service rep.
