1958 Chain

1958 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 1958-CHAIN
Other Customers Viewed
1958 Sprocket
1958 Sprocket
Login
View full details
Description
Specification

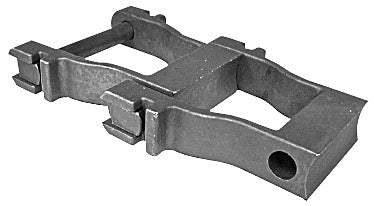

1958 Chain is considered a cast alloy drag chain and features an ultimate strength of 167,900 LBS. This 1958 cast alloy drag chain is extremely high-strength, heavy duty, and anti abrasive due to the common applications it is placed in. Besides the chain we also have a full line of 1958 sprockets, motors, gear boxes, bearings, and more. For more information or to get pricing and availability please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: 1958
  • Style: 1
  • Pitch (A): 9.00"
  • Weight: 39.5 LBS/ FT
  • Weight Per Pin: 4.5 LBS
  • Average Ultimate Strength: 167,900 LBS
  • Recommended Working Load: 23,400 LBS
  • Barrel Length (B): 8.50"
  • Sidebar Width (C): 2.50"
  • Pin Diameter (D): 1.25"
  • Maximum Sprocket Width (E): 5.75"
  • Maximum Overall Average Width (F): 12.00"
  • Pin Head to Center Line (G): 5.78"
  • Pin End to Center Line (H): 5.97"

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Chain
  • Extremely Durable
  • Long Working life
  • High Strength
Featured image
  • Chain Size: 1958
  • Style: 1
  • Pitch (A): 9.00"
  • Weight: 39.5 LBS/ FT
  • Weight Per Pin: 4.5 LBS
  • Average Ultimate Strength: 167,900 LBS
  • Recommended Working Load: 23,400 LBS
  • Barrel Length (B): 8.50"
  • Sidebar Width (C): 2.50"
  • Pin Diameter (D): 1.25"
  • Maximum Sprocket Width (E): 5.75"
  • Maximum Overall Average Width (F): 12.00"
  • Pin Head to Center Line (G): 5.78"
  • Pin End to Center Line (H): 5.97"
