120-2 Roller Chain - 10ft

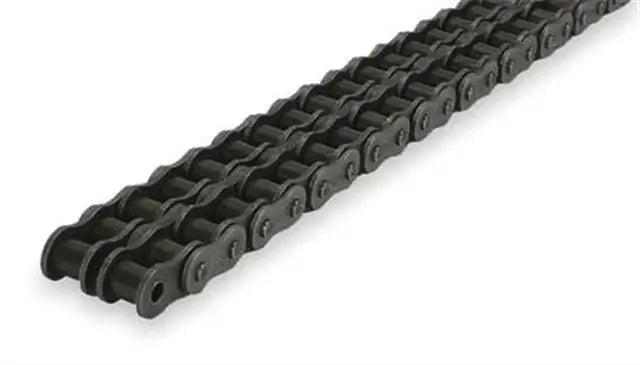

120-2 Double Strand Roller Chain

Alternative Views:

Product Code: ECO-120-2-10FT

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

120-2 roller chain is manufactured to American standards and is a double strand (duplex) industrial chain that is made for the heavy-duty drive and conveying applications. Our 120-2 double roller chain is manufactured in accordance with the American National Standards Institute (ANSI) B29.1 specifications meaning that it interchanges with other brands and manufactures. This chain was manufactured using heat-treated and shot peened components for increased durability, is pre-stretched to eliminate a good portion of elongation, then dipped and greased with a high-quality industrial chain lubricant. We also use a solid-roller design for increased long-term performance and working life. Typically this chain is supplied in a 10ft box and includes one connecting link (master link) for connecting the chain together. For alternate lengths of 120-2 chain please contact us or use 120 - 160 roller chain breaker to edit the chain. For additional information or formal quotes please contact us and we will be happy to assist you.

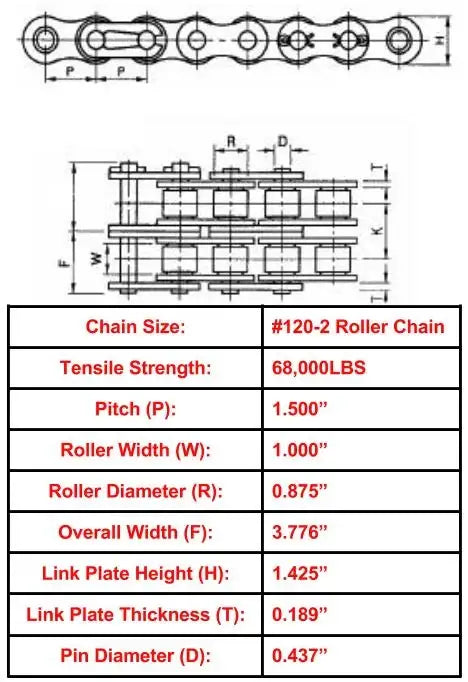

120-2 Chain Dimensions

Chain Size: #120-2
Tensile Strength: 68,000lbs
Pitch (P): 1.500"
Roller Width (W): 1.000"
Roller Diameter (R): 0.875"
Overall Chain Width (F): 3.776"
Link Plate Height (H): 1.425"
Link Plate Thickness (T): 0.189"
Pin Diameter (D): 0.437"
Specifications Met: ANSI Standards

120-2 Double Roller Chain Sprockets

In addition to the chain we stock a full line of premium 120-2 sprockets. For additional information or general questions on Economy Plus Series #120-2 Double Strand Roller chain or any of its accessories, please contact us and we will be happy to assist you.

120-2 Roller Chain Attachments

We can supply 120-2 roller chain attachments, however, there is typically a lead time on these items because they are not in stock. A standard lead time can range from 1-week to 12-weeks depending on the attachment type, factory load, and quantity. We can also supply a complete chain with the attachments already assembled onto it. To get a quote on 120-2 attachments or attachment roller chain you can give us a call or submit a request for quote form on our roller chain attachments section.

Additional 120-2 Chain Accessories

If you need to pull, break, or tension your 120-2 roller chain we can supply the tools and accessories necessary to do so. We also stock roller chain guides for double strand roller chains, as well as chain lube.

Phone: (407) 347-3519
Email:sales@usarollerchain.com

About Us

Features

- Size: #120-2 Double Strand Roller Chain
- Heat-Treated For Increased Strength & Durability
- Tensile Strength: 68,000lbs
- Constructed of Hardened Steel For Increased Fatigue & Performance
- Has Solid Rollers For Increased Working Life And Performance
- Fully Meets And Exceeds All ANSI Standards
