XTH45 Stainless Steel Hub
Note:
Custom Cut to Length Chain Also Available
SKU: XTH45SS-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
XTH45 Stainless Steel Hub Features
XTH45 Stainless Steel Hub Specifications

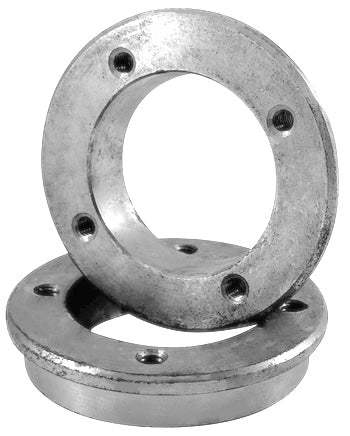

XTH15 stainless steel hub is a type 1 XT series hub made from high-quality 300-grade stainless steel. Our XTH15SS stainless hub is specifically designed to be used with conveyor pulleys and is capable of operating in food-grade, abrasive, and corrosive applications. Additionally, this stainless steel XTH15 hub directly interchanges with other manufacturers and is suitable to pair with XTB45SS bushings. For more information or to get a quote on our high-quality XTH15 stainless hubs, contact our customer support team, and we will be happy to assist you!
XTH15SS Stainless Hub Dimensions
- Part #: XTH45SS
- Outside Diameter: 8.315"
- Dimension (A): 1-1/2"
- Dimension (B): 5.938"
- Dimension (C): 8.000"
- Dimension (V): 6-7/8"
- Dimension (X): 2-1/8"
- Dimension (d): 1-9/16"
- Amount of Tapped Holes: 4
- Tapped Hole Size: 5/8-11NC
- Weight: 15.4 LBS
- Part #: XTH45SS
- Outside Diameter: 8.315"
- Dimension (A): 1-1/2"
- Dimension (B): 5.938"
- Dimension (C): 8.000"
- Dimension (V): 6-7/8"
- Dimension (X): 2-1/8"
- Dimension (d): 1-9/16"
- Amount of Tapped Holes: 4
- Tapped Hole Size: 5/8-11NC
- Weight: 15.4 LBS
