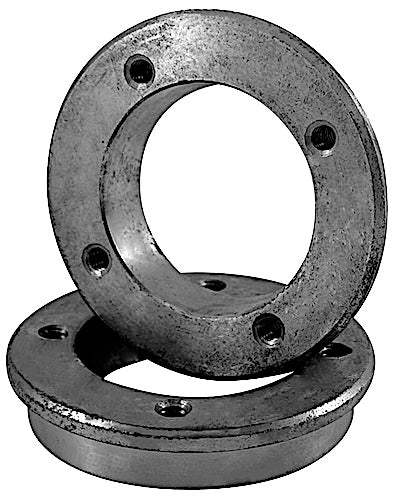

XTH40 Hub

XTH40 Hub

Note: Custom Cut to Length Chain Also Available
$169.99
$169.99
In Stock
On Sale Sold out
Product Code: XTH40-HUB
In Stock
Shipping calculated at checkout.

Login to Request a Quote

View full details
Description
Specification
The XTH40 hub is a specific hub designed for conveyor pulleys. This hub utilizes a 2" per foot taper that provides superior holding power compared to a standard taper hub. Our premium XTH40 hub is precision-actuated to pair perfectly with XTB40 bushings. The XTH40 hub provides reduced axial movement to reduce end disc prestressing and is easy to install. For more information or to get a quote on our XTH40 hubs, contact our customer service team, and we will gladly assist you!

XTH40 Hub Dimensions

XTH40 Hub
  • Part #: XTH40
  • Outside Diameter: 7.563"
  • Dimension (A): 1-1/4"
  • Dimension (B): 5.313"
  • Dimension (C): 7.250"
  • Dimension (V): 6-1/8"
  • Dimension (X): 1-3/4"
  • Dimension (d): 1-3/8"
  • Amount of Tapped Holes: 4
  • Tapped Hole Size: 9/16-12NC
  • Weight: 10.7 LBS


Feature

  • Type 1 XT Hub
  • Precision Made From Premium Steel
  • Designed For Conveyor Pulleys and End Disc
  • Optimal Taper of 2" Per Foot
  • Self-Seating Design, Eliminating Need For Hammer and Drift
  • Reduced Axial Movement
  • Reduced Risk of Pulley Walking on Shaft
  • Equally Spaced Bolts For Uniform Draw-Up
  • Full-Length Bushing Engagement
Featured image
  • Part #: XTH40
  • Outside Diameter: 7.563"
  • Dimension (A): 1-1/4"
  • Dimension (B): 5.313"
  • Dimension (C): 7.250"
  • Dimension (V): 6-1/8"
  • Dimension (X): 1-3/4"
  • Dimension (d): 1-3/8"
  • Amount of Tapped Holes: 4
  • Tapped Hole Size: 9/16-12NC
  • Weight: 10.7 LBS
