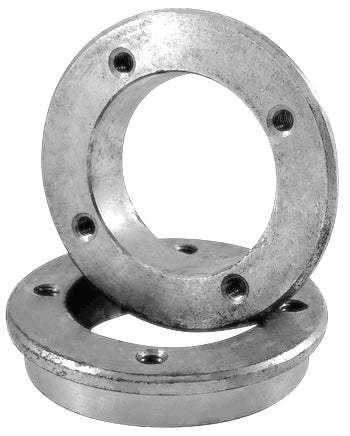

XTH15 stainless steel hub is a type 1 XT series hub made from high-quality 300-grade stainless steel. Our XTH15SS stainless hub is specifically designed to be used with conveyor pulleys and is capable of operating in food-grade, abrasive, and corrosive applications. Additionally, this stainless steel XTH15 hub directly interchanges with other manufacturers and is suitable to pair with XTB30SS bushings. For more information or to get a quote on our high-quality XTH15 stainless hubs, contact our customer support team, and we will be happy to assist you!
XTH15SS Stainless Hub Dimensions
- Part #: XTH30SS
- Outside Diameter: 5.940"
- Dimension (A): 7/8"
- Dimension (B): 3.875"
- Dimension (C): 5.750"
- Dimension (V): 4-9/16"
- Dimension (X): 1-1/4"
- Dimension (d): 1-1/16"
- Amount of Tapped Holes: 4
- Tapped Hole Size: 7/16-14NC
- Weight: 4.1 LBS
Feature
- Made From Premium 300-Grade Stainless Steel
- Directly Interchanges With Other Brands
- Self Seating
- Reduced Axial Movement
- Equally Spaced Bolts for Uniform Draw-Up
- Easy Install and Removal
- Full Length Engagement With Bushing
- Part #: XTH30SS
- Outside Diameter: 5.940"
- Dimension (A): 7/8"
- Dimension (B): 3.875"
- Dimension (C): 5.750"
- Dimension (V): 4-9/16"
- Dimension (X): 1-1/4"
- Dimension (d): 1-1/16"
- Amount of Tapped Holes: 4
- Tapped Hole Size: 7/16-14NC
- Weight: 4.1 LBS
