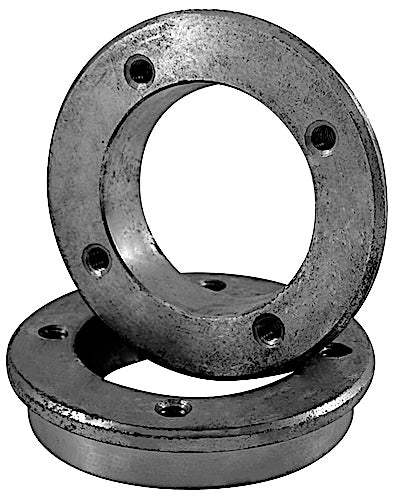

XTH20F12 Hub

XTH20F12 Hub

Note: Custom Cut to Length Chain Also Available
Product Code: XTH20F12-HUB
Shipping calculated at checkout.
View full details
Description
Specification
The XTH20F12 hub is a type 2 XT-style hub designed for conveyor pulley applications. This hub utilizes a 2" per foot taper that provides superior holding power compared to a standard taper hub. Our premium XTH20F12 hub is precision-actuated to pair perfectly with XTB20 bushings. The XTH20F12 hub provides reduced axial movement to reduce end disc prestressing and is easy to install. For more information or to get a quote on our XTH20F12 hubs, contact our customer service team, and we will gladly assist you!

XTH20F12 Hub Dimensions

XTH20F12 Hub
  • Part #: XTH20F12
  • Outside Diameter: 11.847"
  • Dimension (A): 5/16"
  • Dimension (B): 2.688"
  • Dimension (C): 3.688"
  • Dimension (V): 3-3/16"
  • Dimension (X): 13/16"
  • Amount of Tapped Holes: 4
  • Tapped Hole Size: 5/16-18NC
  • Weight: 9.7 LBS


Feature

  • Type 2 XT Hub
  • Precision Made From Premium Steel
  • Designed For Conveyor Pulleys and End Disc
  • Optimal Taper of 2" Per Foot
  • Self-Seating Design, Eliminating Need For Hammer and Drift
  • Reduced Axial Movement
  • Reduced Risk of Pulley Walking on Shaft
  • Equally Spaced Bolts For Uniform Draw-Up
  • Full-Length Bushing Engagement
Featured image
  • Part #: XTH20F12
  • Outside Diameter: 11.847"
  • Dimension (A): 5/16"
  • Dimension (B): 2.688"
  • Dimension (C): 3.688"
  • Dimension (V): 3-3/16"
  • Dimension (X): 13/16"
  • Amount of Tapped Holes: 4
  • Tapped Hole Size: 5/16-18NC
  • Weight: 9.7 LBS
