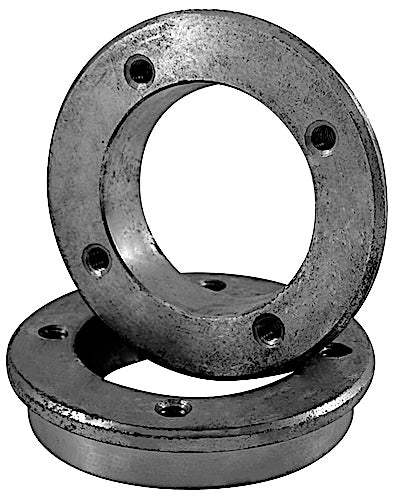

XTH15 Hub
Note:
Custom Cut to Length Chain Also Available
$16.99
SKU: XTH15-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
XTH15 Hub Features
XTH15 Hub Specifications
The XTH15 hub is a specific hub designed for conveyor pulleys. This hub utilizes a 2" per foot taper that provides superior holding power compared to a standard taper hub. Our premium XTH15 hub is precision-actuated to pair perfectly with XTB15 bushings. The XTH15 hub provides reduced axial movement to reduce end disc prestressing and is easy to install. For more information or to get a quote on our XTH15 hubs, contact our customer service team, and we will gladly assist you!
XTH15 Hub Dimensions
- Part #: XTH15
- Outside Diameter: 3.190"
- Dimension (A): 7/16"
- Dimension (B): 2.000"
- Dimension (C): 2.875"
- Dimension (V): 2-7/16"
- Dimension (X): 5/8"
- Dimension (d): 5/8"
- Amount of Tapped Holes: 4
- Tapped Hole Size: 1/4-20NC
- Weight: 0.7 LBS
Part #: XTH15
Outside Diameter: 3.190"
Dimension (A): 7/16"
Dimension (B): 2.000"
Dimension (C): 2.875"
Dimension (V): 2-7/16"
Dimension (X): 5/8"
Dimension (d): 5/8"
Amount of Tapped Holes: 4
Tapped Hole Size: 1/4-20NC
Weight: 0.7 LBS
