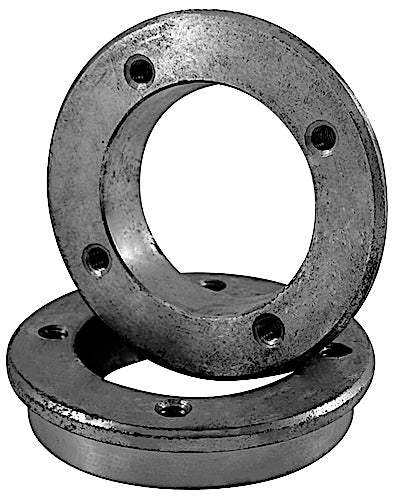

XTH100 Hub

XTH100 Hub

Note: Custom Cut to Length Chain Also Available
Product Code: XTH100-HUB
Shipping calculated at checkout.
View full details
Description
Specification
The XTH100 hub is a specific hub designed for conveyor pulleys. This hub utilizes a 2" per foot taper that provides superior holding power compared to a standard taper hub. Our premium XTH100 hub is precision-actuated to pair perfectly with XTB100 bushings. The XTH100 hub provides reduced axial movement to reduce end disc prestressing and is easy to install. For more information or to get a quote on our XTH100 hubs, contact our customer service team, and we will gladly assist you!

XTH100 Hub Dimensions

XTH100 Hub
  • Part #: XTH100
  • Outside Diameter: 17.940"
  • Dimension (A): 3"
  • Dimension (B): 13.688"
  • Dimension (C): 17.500"
  • Dimension (V): 15-9/16"
  • Dimension (X): 4-1/8"
  • Dimension (d): 1-3/4"
  • Amount of Tapped Holes: 6
  • Tapped Hole Size: 1-1/8-7NC
  • Weight: 122.0 LBS


Feature

  • Type 1 XT Hub
  • Precision Made From Premium Steel
  • Designed For Conveyor Pulleys and End Disc
  • Optimal Taper of 2" Per Foot
  • Self-Seating Design, Eliminating Need For Hammer and Drift
  • Reduced Axial Movement
  • Reduced Risk of Pulley Walking on Shaft
  • Equally Spaced Bolts For Uniform Draw-Up
  • Full-Length Bushing Engagement
Featured image
  • Part #: XTH100
  • Outside Diameter: 17.940"
  • Dimension (A): 3"
  • Dimension (B): 13.688"
  • Dimension (C): 17.500"
  • Dimension (V): 15-9/16"
  • Dimension (X): 4-1/8"
  • Dimension (d): 1-3/4"
  • Amount of Tapped Holes: 6
  • Tapped Hole Size: 1-1/8-7NC
  • Weight: 122.0 LBS
