Specialty Chain > Engineering Class Chains > Welded Steel Chain
WS78 Chain | Welded Steel Chain
Note:
Custom Cut to Length Chain Also Available
SKU: WS78-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
WS78 Chain | Welded Steel Chain Features
WS78 Chain | Welded Steel Chain Specifications

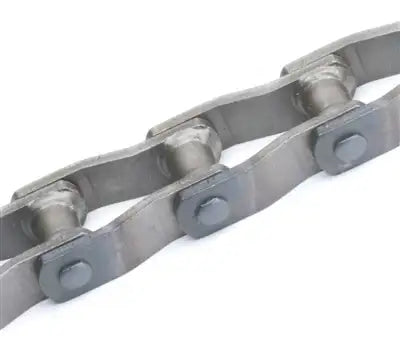

Our WS78 chain is a high-strength premium quality welded steel chain that dimensionally interchanges with other brands but is made with premium alloys that are heat-treated with a precision weld around the barrel of the chain to the sidebars. WS78 chain can be found in many grain handling, agricultural, forestry, and conveying systems that require a high-strength chain. We also supply WS78 sprockets and chain attachments, for more information or to get a quote please contact us and we will be happy to assist you.
WS78 Chain Dimensions
- Chain Size: WS78
- Pitch (A): 2.609"
- Dimension (G): 0.787"
- Dimension (F): 1.626"
- Dimension (H): 0.839"
- Dimension (B): 1.000"
- Dimension (C): 0.236"
- Dimension (D): 0.500"
- Dimension (E): 2.602"
- Weight: 3.37 LBS/ FT
- Chain Size: WS78
- Pitch (A): 2.609"
- Dimension (G): 0.787"
- Dimension (F): 1.626"
- Dimension (H): 0.839"
- Dimension (B): 1.000"
- Dimension (C): 0.236"
- Dimension (D): 0.500"
- Dimension (E): 2.602"
- Weight: 3.37 LBS/ FT
