• WR155 Chain
1 1

WR155 Chain

WR155 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: WR155-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
WR155 Pin
WR155 Pin
Login
View full details
Description
Specification

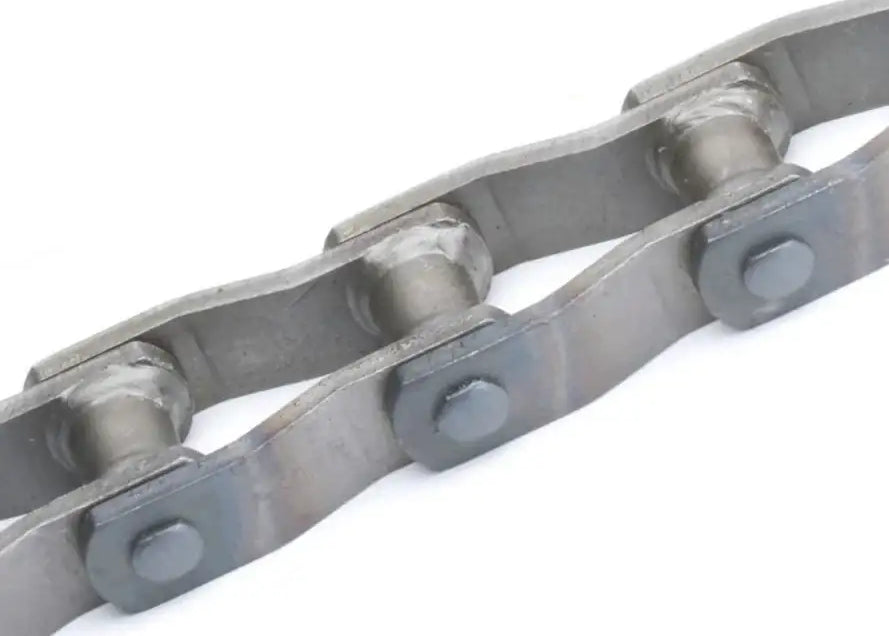

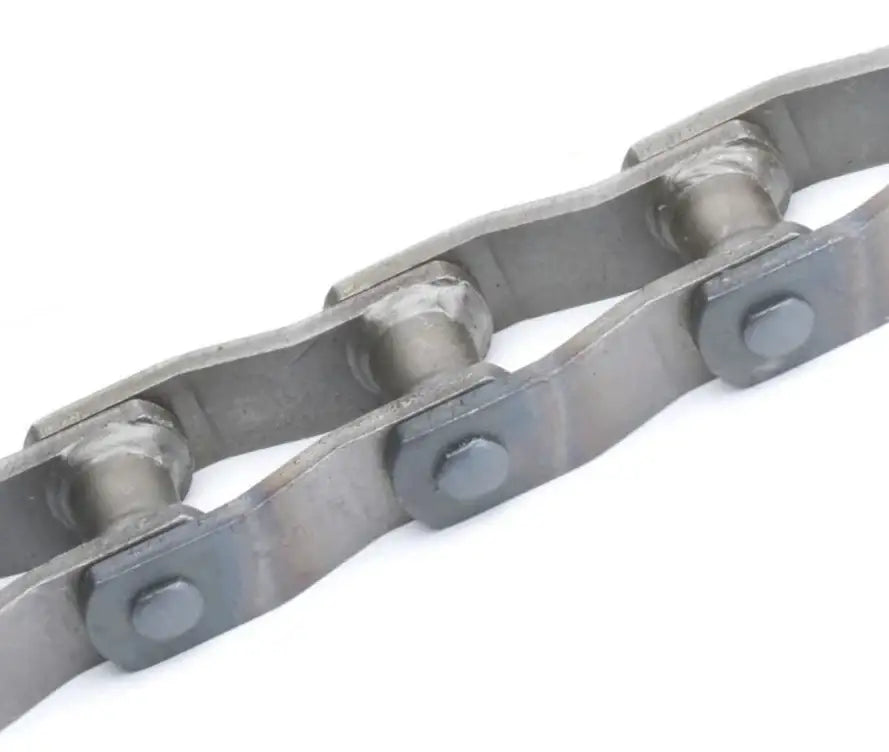

This WR155 welded steel offset chain that we offer exceeds in quality, working life, and strength. Additionally, This WR155 chain is extremely durable, low maintenance, and at a great price! WR155 welded steel chain is often recommended for most conveying, driving, and elevating applications were a high-strength and durable steel roller-less chain is required. WR155 chain is commonly found on heavy-duty conveyors, forest products, grain handling, pulp and paper, and sugar processing. WR155 chain is also commonly referred to as WH155 chain, The H stands for Fully Heat Treated Sidebars (Which We Also Stock).

Dimensions:
WR155 Chain
  • Part Number: WR155
  • Pitch (P): 6.050"
  • Tensile Strength: 165,000 LBS
  • Weight: 19.00 LBS/ FT
  • Overall Pin & Cotter (F1): 6.41"
  • Between Sidebars (L): 2.75"
  • Sidebar Thickness (S): 0.56"
  • Sidebar Height (H): 2.50"
  • Rivet Diameter (D6): 1.13"
  • Bushing Diameter (D5): 1.75"
  • Bearing Length (B): 4.44"


Additionally, we offer a full line of high quality sprockets that range in tooth size, bore size, and hub configuration, and is manufactured specifically for WR155 chain. We can even supply Made To Order (MTO) and custom sprockets to meet your exact application needs. We also offer a full line of attachments for this chain that can be assembled in any configuration needed.
WR155 Chain__WR155 Chain


Looking for something stronger? Checkout the option below!
WR155 Chain


For pricing and availability on WR155 Welded Steel Chain or to get a quote on sprockets or attachments, please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Heat Treated Pins
  • Manufactured With High Quality Steel
  • Extremely Durable
  • High Strength & Heavy Duty
Featured image
  • Part Number: WR155
  • Pitch (P): 6.050"
  • Tensile Strength: 165,000 LBS
  • Weight: 19.00 LBS/ FT
  • Overall Pin & Cotter (F1): 6.41"
  • Between Sidebars (L): 2.75"
  • Sidebar Thickness (S): 0.56"
  • Sidebar Height (H): 2.50"
  • Rivet Diameter (D6): 1.13"
  • Bushing Diameter (D5): 1.75"
  • Bearing Length (B): 4.44"
