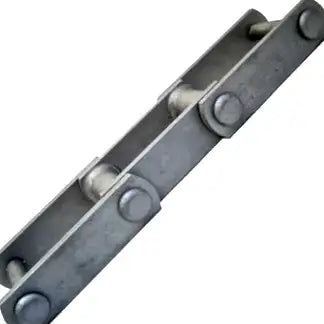

WHC110 Chain

WHC110 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: WHC110-CHAIN
Shipping calculated at checkout.
Other Customers Viewed

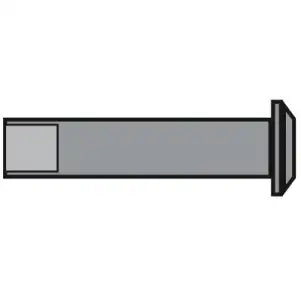

WHC110 Pin
WHC110 Pin
Login
View full details
Description
Specification
WHC110 chain is commonly found in forestry products, grain handling applications, and conveying applications. This WHC110 chain is a high quality, durable, and economically priced product. Something special about this chain is that each and every component is fully heat-treated and hardened to drastically increase the overall chain strength, working life, and durability.

Dimensions:
WHC110 Chain
  • Part Number: WHC110
  • Ultimate Strength: 57,000 LBS
  • Pitch (A): 6.000"
  • Sidebar Height (B): 1-1/2"
  • Sidebar Thickness (C): 3/8"
  • Pin diameter (D): 3/4"
  • Overall Width (E): 4-1/4"
  • Length Of Bearing (F): 2.812"
  • Maximum Sprocket thickness (G): 1-1/2"
  • Barrel Outside Diameter (H): 1.250"
  • Links Per Foot: 2.00
  • Weight Per Foot: 6.40 LBS


We offer a full line of high quality sprockets for this chain that range in tooth side, bore size, and hub configurations to meet your exact needs.
Select the image below to view some of the standard sprockets offered for this chain.

WHC110 Chain


Additionally we offer a full line of attachments for this chain and can assemble them onto the chain in any configuration needed. For pricing and availability on WHC110 chain, attachments, or sprockets, please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Chain
  • Fully Heat-Treated Components
  • Straight Side Bars
  • Extremely Durable
  • Easiest In Field Welding
  • High Strength
Featured image
  • Part Number: WHC110
  • Ultimate Strength: 57,000 LBS
  • Pitch (A): 6.000"
  • Sidebar Height (B): 1-1/2"
  • Sidebar Thickness (C): 3/8"
  • Pin diameter (D): 3/4"
  • Overall Width (E): 4-1/4"
  • Length Of Bearing (F): 2.812"
  • Maximum Sprocket thickness (G): 1-1/2"
  • Barrel Outside Diameter (H): 1.250"
  • Links Per Foot: 2.00
  • Weight Per Foot: 6.40 LBS
