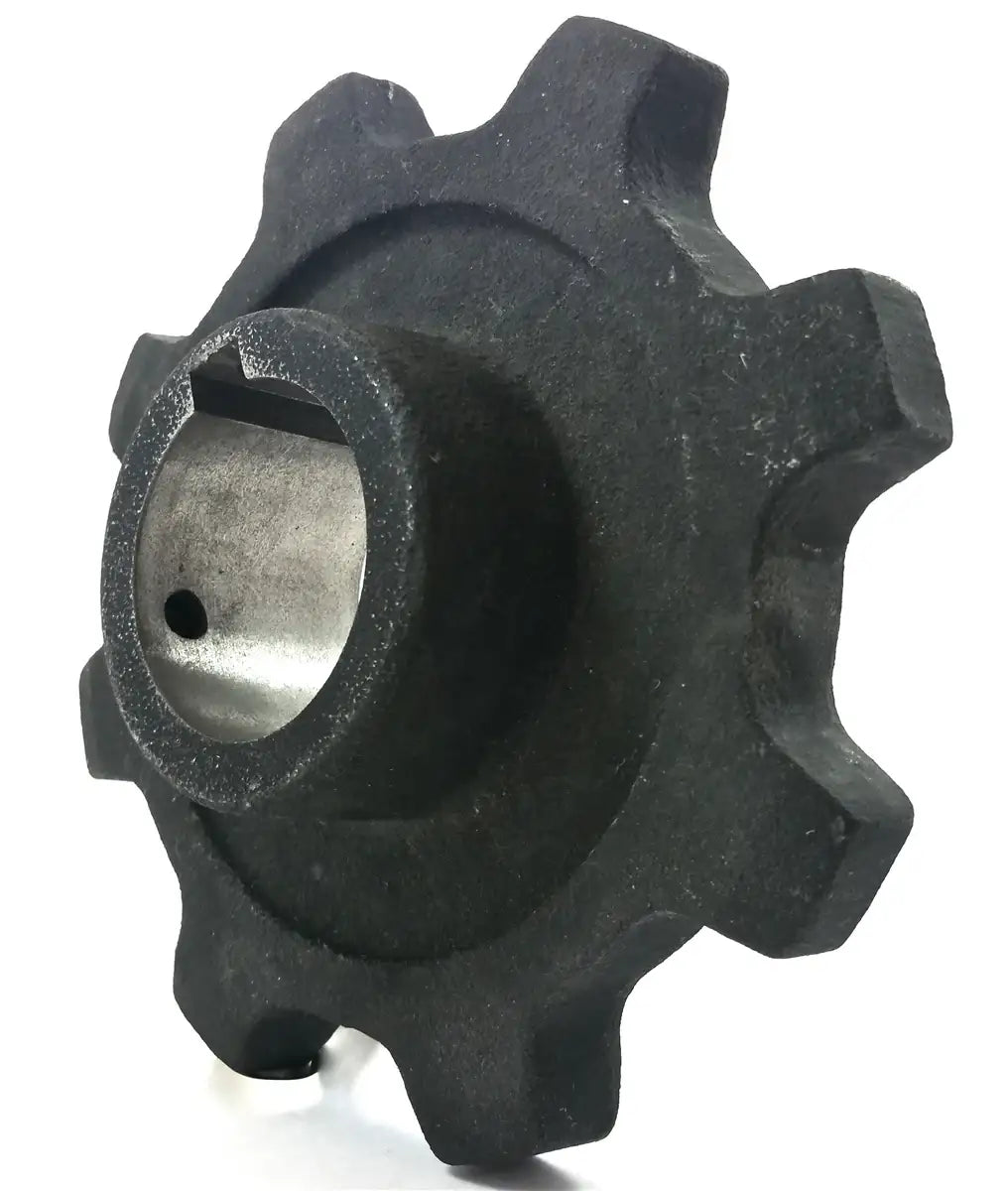

WH78XHD-B20 Sprocket

Name: WH78XHD-B20 Sprocket
Brand: USA ROLLER CHAIN
SKU: WH78XHD-B20-SPROCKET
Availability: InStock

SKU: WH78XHD-B20-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

WH78XHD-B20 Sprocket Description/Features

WH78XHD-B20 Sprocket Specifications

WH78XHD-B20 Sprocket

This WH78XHD sprocket will work with both WR78XHD welded steel chain and WH78XHD welded steel chain. We can supply this sprocket manufactured out of mild steel or QT400 hardened steel and either solid construction, split to bolt, split for welding construction per request. Also we can supply this sprocket machined or precision hobbed for high-speed applications. Additionally, we can supply this sprocket as a brass, nylon or UHMW idler complete with grease grooves and grease fittings. For pricing and availability please contact us and we will be happy to assist you.

Dimensions:

Style: B-Hub
Number Of Teeth: 20
Pitch: 2.609"
Pitch Diameter: 16.680"
Shroud Diameter: 15.210"
Tooth Face: 1.000"
Maximum Bore: 5.9375"
Compatible Chains: WR78XHD, WH78XHD
