WH78-C12 Sprocket

By Application > Agricultural Products > Manure Spreader Chain > GEHL Manure Spreader Chain > Welded Steel Mill Chain Sprockets > Offset Sidebar Welded Steel Chain Sprockets > WR78/ WH78 Chain Sprockets > C-Hub WR78/ WH78 Sprockets

WH78-C12 Sprocket

Note: Custom Cut to Length Chain Also Available
SKU: WH78-C12-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715496018287" , "metafield_value":""}]
WH78-C12 Sprocket Features
WH78-C12 Sprocket Specifications

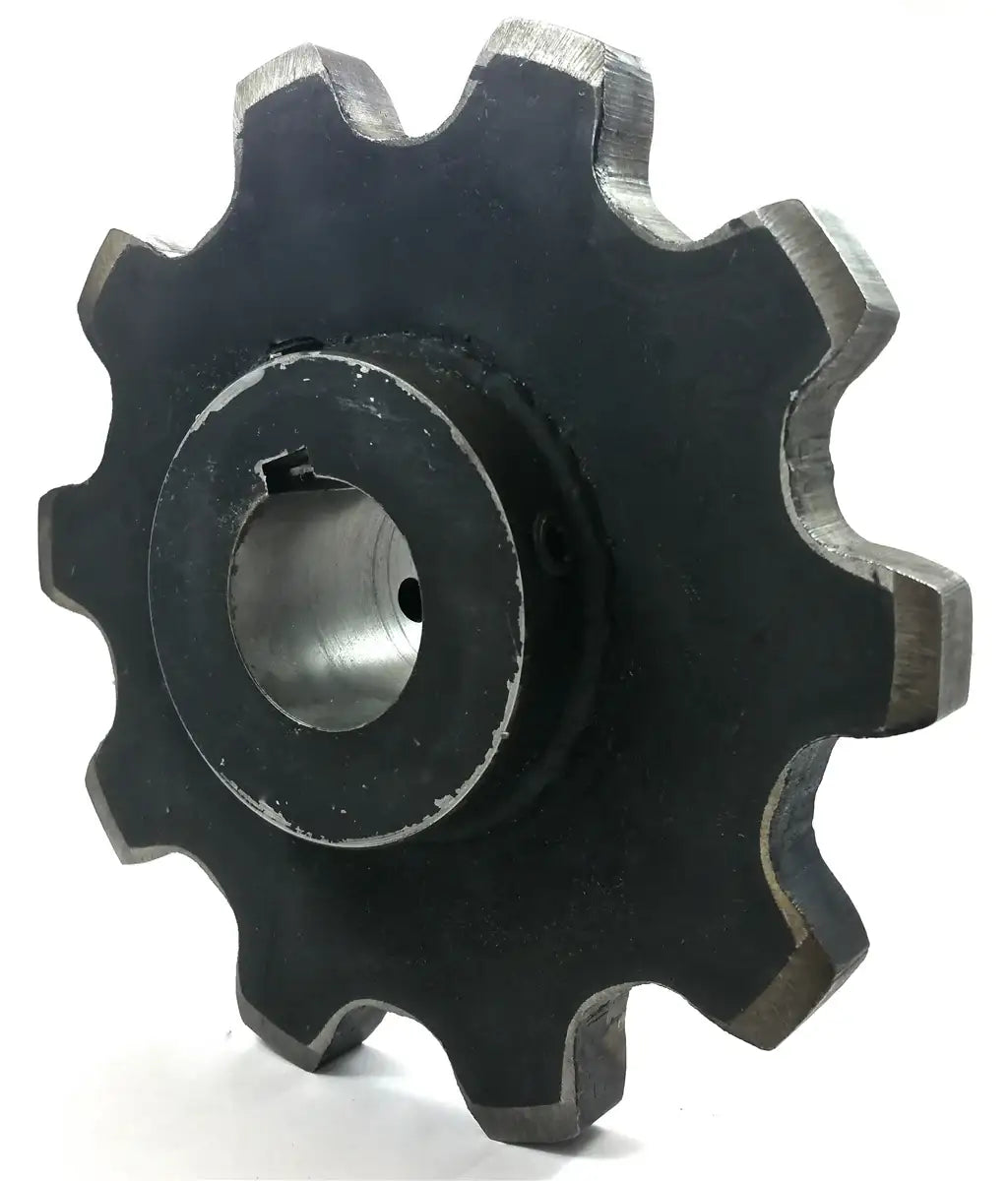

WH78-C12 Sprocket

This WH78 sprocket will work with both WR78 welded steel chain and WH78 welded steel chain. We can supply this sprocket manufactured out of mild steel or QT400 hardened steel and either solid construction, split to bolt, split for welding construction per request. Also we can supply this sprocket machined or precision hobbed for high-speed applications. Additionally, we can supply this sprocket as a brass, nylon or UHMW idler complete with grease grooves and grease fittings. For pricing and availability please contact us and we will be happy to assist you.

Dimensions:
WH78-C12 Sprocket
  • Style: C-Hub
  • Number Of Teeth: 12
  • Pitch: 2.609"
  • Pitch Diameter: 10.080"
  • Shroud Diameter: 8.500"
  • Hub Diameters (A/B): 5.250"/ 5.000"
  • Length Thru Bore: 3.875"
  • Barrel Diameter: 0.875"
  • Plate Thickness: 0.875"
  • Tooth Face: 1.000"
  • Stock Bore: 1.250"
  • Maximum Bore: 3.4375"
  • Weight: 37.00 LBS
  • Compatible Chains: WR78, WH78, C188

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Style: C-Hub
  • Number Of Teeth: 12
  • Pitch: 2.609"
  • Pitch Diameter: 10.080"
  • Shroud Diameter: 8.500"
  • Hub Diameters (A/B): 5.250"/ 5.000"
  • Length Thru Bore: 3.875"
  • Barrel Diameter: 0.875"
  • Plate Thickness: 0.875"
  • Tooth Face: 1.000"
  • Stock Bore: 1.250"
  • Maximum Bore: 3.4375"
  • Weight: 37.00 LBS
  • Compatible Chains: WR78, WH78, C188
