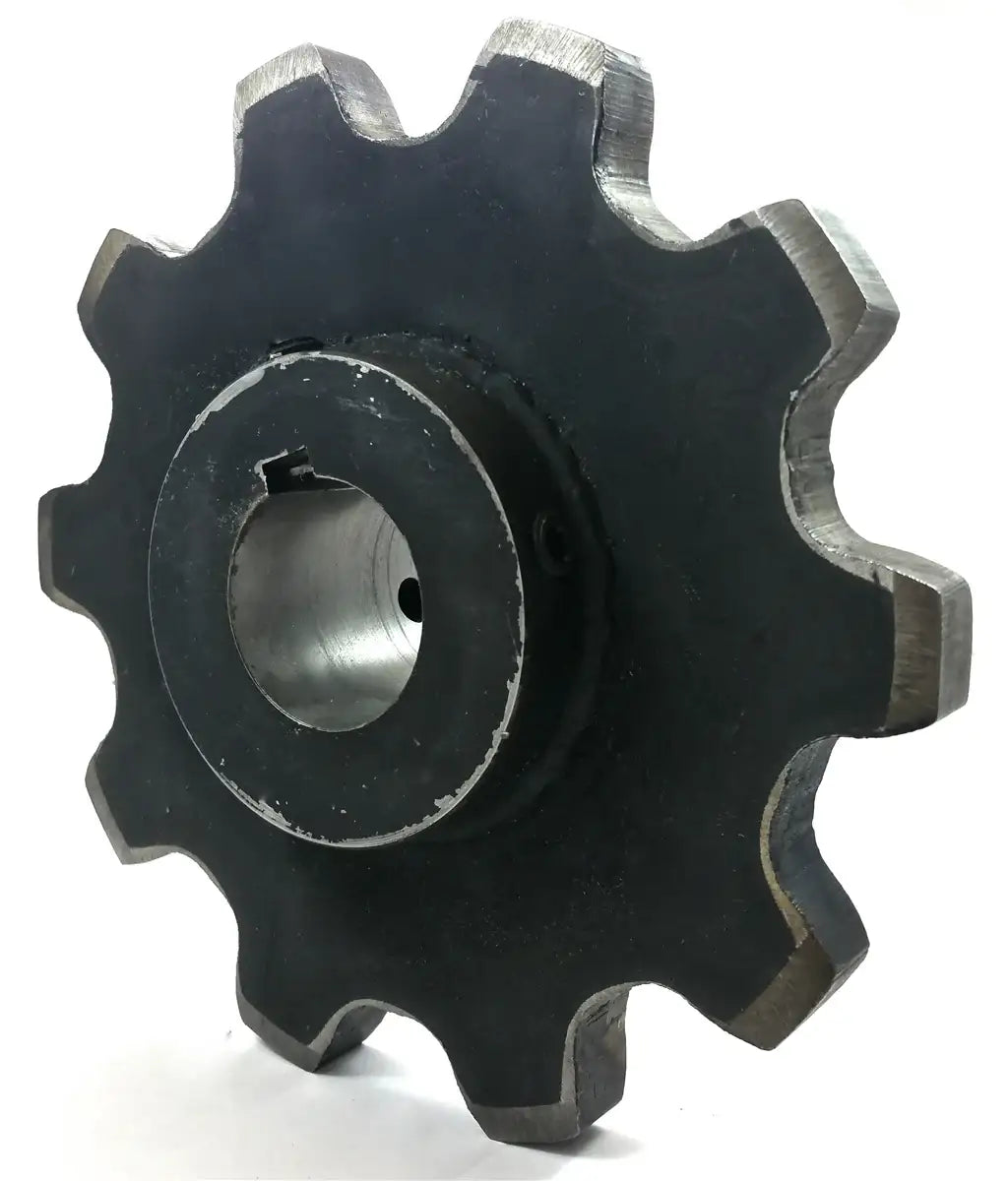

WH78-C10 Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: WH78-C10-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
WH78-C10 Sprocket Features
WH78-C10 Sprocket Specifications
WH78-C10 Sprocket
This WH78 sprocket will work with both WR78 welded steel chain and WH78 welded steel chain. We can supply this sprocket manufactured out of mild steel or QT400 hardened steel and either solid construction, split to bolt, split for welding construction per request. Also we can supply this sprocket machined or precision hobbed for high-speed applications. Additionally, we can supply this sprocket as a brass, nylon or UHMW idler complete with grease grooves and grease fittings. For pricing and availability please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
This WH78 sprocket will work with both WR78 welded steel chain and WH78 welded steel chain. We can supply this sprocket manufactured out of mild steel or QT400 hardened steel and either solid construction, split to bolt, split for welding construction per request. Also we can supply this sprocket machined or precision hobbed for high-speed applications. Additionally, we can supply this sprocket as a brass, nylon or UHMW idler complete with grease grooves and grease fittings. For pricing and availability please contact us and we will be happy to assist you.
Dimensions:
- Style: C-Hub
- Number Of Teeth: 10
- Pitch: 2.609"
- Pitch Diameter: 8.440"
- Shroud Diameter: 6.776"
- Hub Diameters (A/B): 5.250"/ 5.000"
- Length Thru Bore: 3.875"
- Barrel Diameter: 0.875"
- Plate Thickness: 0.875"
- Tooth Face: 1.000"
- Stock Bore: 1.250"
- Maximum Bore: 2.9375"
- Weight: 31.00 LBS
- Compatible Chains: WR78, WH78, C188
Phone: (407) 347-3519
Email:
- Style: C-Hub
- Number Of Teeth: 10
- Pitch: 2.609"
- Pitch Diameter: 8.440"
- Shroud Diameter: 6.776"
- Hub Diameters (A/B): 5.250"/ 5.000"
- Length Thru Bore: 3.875"
- Barrel Diameter: 0.875"
- Plate Thickness: 0.875"
- Tooth Face: 1.000"
- Stock Bore: 1.250"
- Maximum Bore: 2.9375"
- Weight: 31.00 LBS
- Compatible Chains: WR78, WH78, C188
