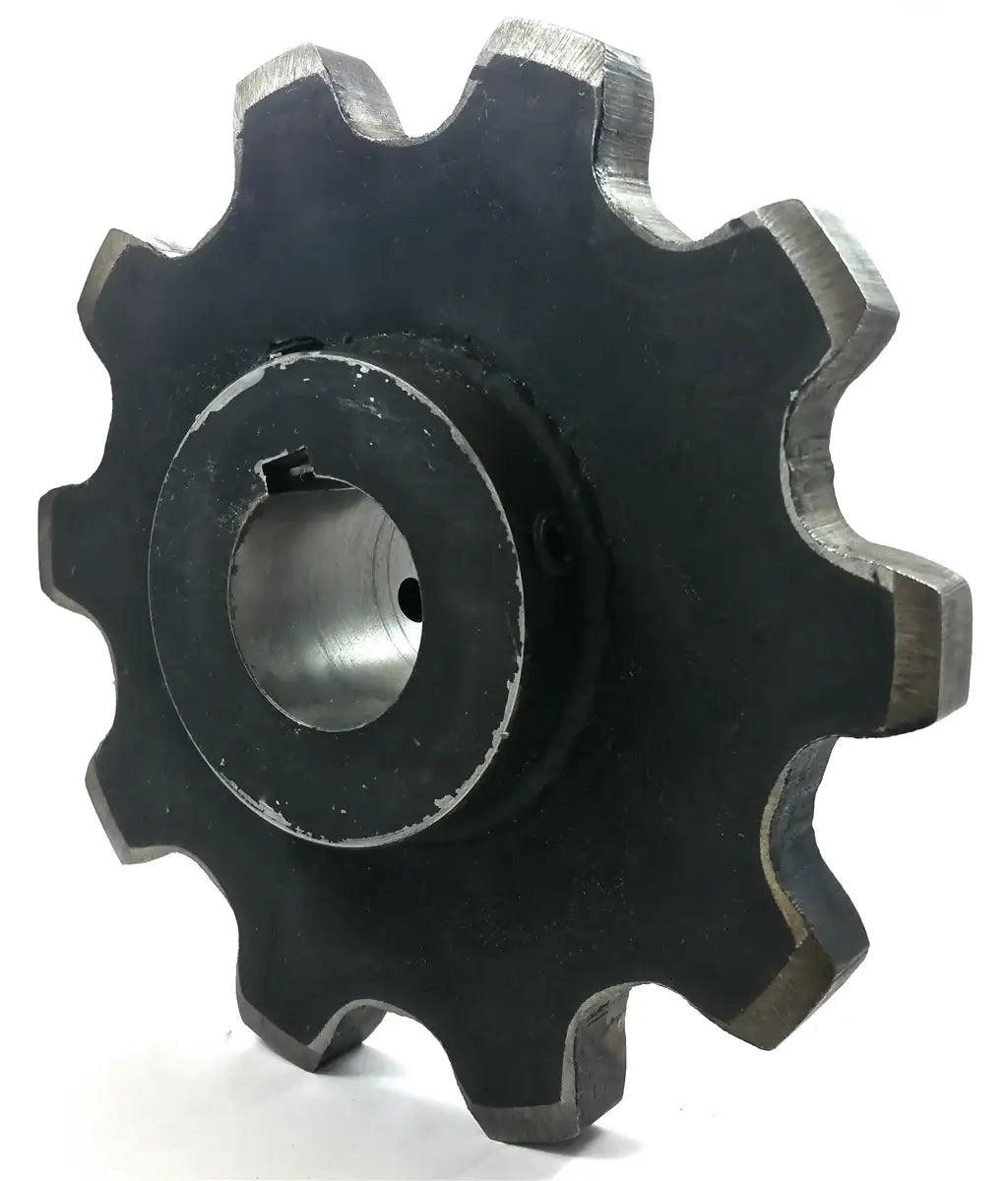

WH124-C15 Sprocket

Name: WH124-C15 Sprocket
Brand: USA ROLLER CHAIN
SKU: WH124-C15-SPROCKET
Availability: InStock

SKU: WH124-C15-SPROCKET

Only 0 left in stockItem is out of stock Item is unavailable

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

WH124-C15 Sprocket Description/Features

WH124-C15 Sprocket Specifications

WH124-C15 Sprocket

This WH124 sprocket will work with both WR124 welded steel chain and WH124 welded steel chain. We can supply this sprocket manufactured out of mild steel or QT400 hardened steel and either solid construction, split to bolt, split for welding construction per request. Also we can supply this sprocket machined or precision hobbed for high-speed applications. Additionally, we can supply this sprocket as a brass, nylon or UHMW idler complete with grease grooves and grease fittings. For pricing and availability please contact us and we will be happy to assist you.

Dimensions:

Style: C-Hub
Number Of Teeth: 15
Pitch: 6.050"
Pitch Diameter: 19.239"
Hub Diameters (A/B): 6.500"/ 6.250"
Length Thru Bore: 5.000"
Barrel Diameter: 1.750"
Plate Thickness: 1.250"
Stock Bore: 1.500"
Maximum Bore: 5.9375"
Weight: 136.00 LBS
Compatible Chains: WR124, WH124, W124SS
