WH106-C12 Sprocket

WH106-C12 Sprocket

Note: Custom Cut to Length Chain Also Available
Product Code: WH106-C12-SPROCKET
Shipping calculated at checkout.
Other Customers Viewed
WH106 Chain - Welded Steel Mill Chain
WH106 Chain - Welded Steel Mill Chain
Login
WR106 Chain - Welded Steel Mill Chain
WR106 Chain - Welded Steel Mill Chain
Login
View full details
Description
Specification

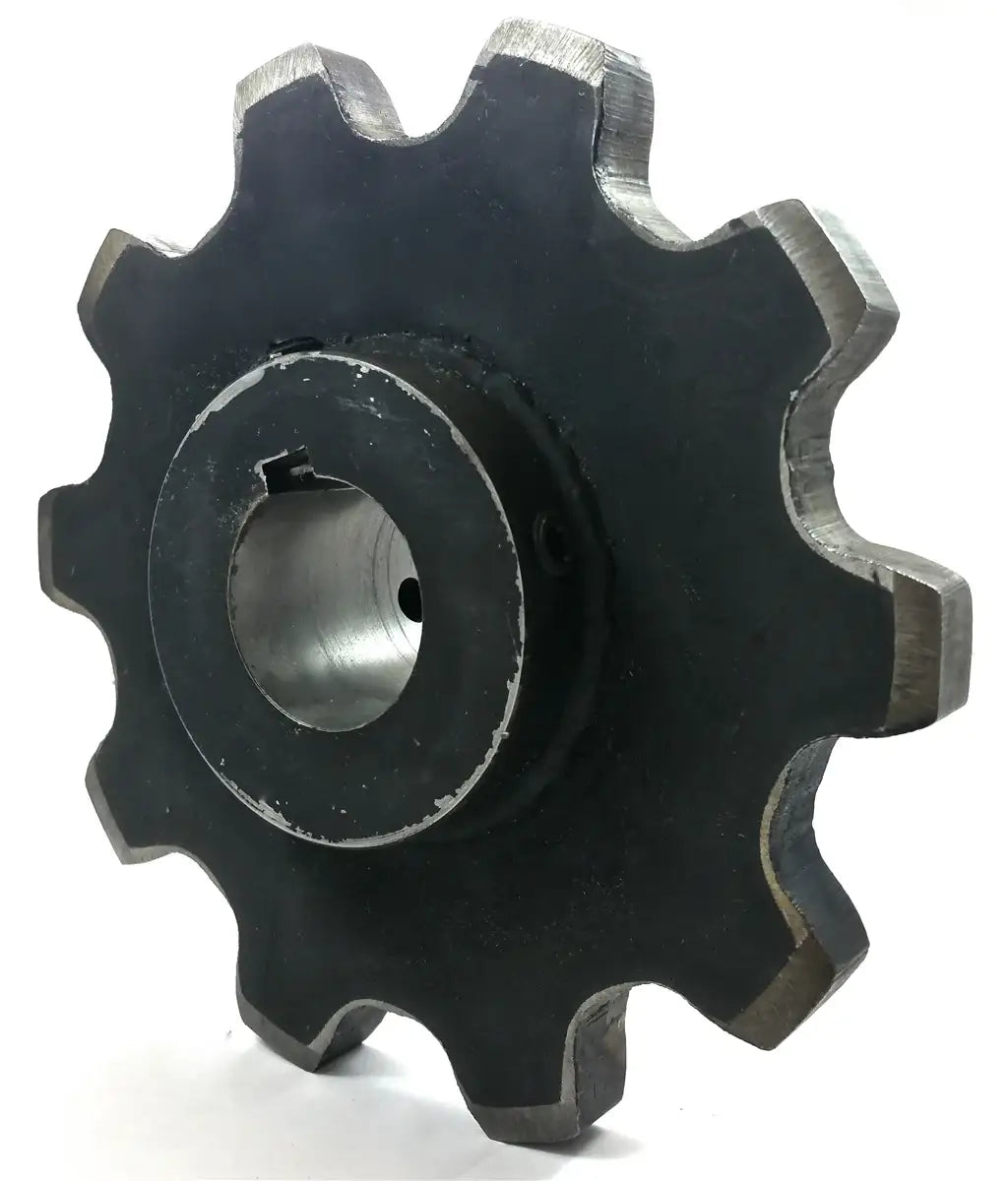

WH106-C12 Sprocket

This WH106 sprocket will work with both WH106 welded steel chain and WH106 welded steel chain. We can supply this sprocket manufactured out of mild steel or QT400 hardened steel and either solid construction, split to bolt, split for welding construction per request. Also we can supply this sprocket machined or precision hobbed for high-speed applications. Additionally, we can supply this sprocket as a brass, nylon or UHMW idler complete with grease grooves and grease fittings. For pricing and availability please contact us and we will be happy to assist you.

Dimensions:
WH106-C12 Sprocket
  • Style: C-Hub
  • Number Of Teeth: 12
  • Pitch: 6.000"
  • Pitch Diameter: 23.180"
  • Shroud Diameter: 20.740"
  • Hub Diameter: 8.000"
  • Length Thru Bore: 6.250"
  • Barrel Diameter: 1.250"
  • Plate Thickness: 1.500"
  • Tooth Face: 1.500"
  • Stock Bore: 1.500"
  • Maximum Bore: 5.440"
  • Weight: 216.00 LBS
  • Compatible Chains: WR106, WH106

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Will Work With WR106 Chain & WH106 Chain
  • Premium Quality Chain Sprocket
  • Wide Range Of Options Available
  • Best Pricing From USA Roller Chain & Sprockets
Featured image
  • Style: C-Hub
  • Number Of Teeth: 12
  • Pitch: 6.000"
  • Pitch Diameter: 23.180"
  • Shroud Diameter: 20.740"
  • Hub Diameter: 8.000"
  • Length Thru Bore: 6.250"
  • Barrel Diameter: 1.250"
  • Plate Thickness: 1.500"
  • Tooth Face: 1.500"
  • Stock Bore: 1.500"
  • Maximum Bore: 5.440"
  • Weight: 216.00 LBS
  • Compatible Chains: WR106, WH106
