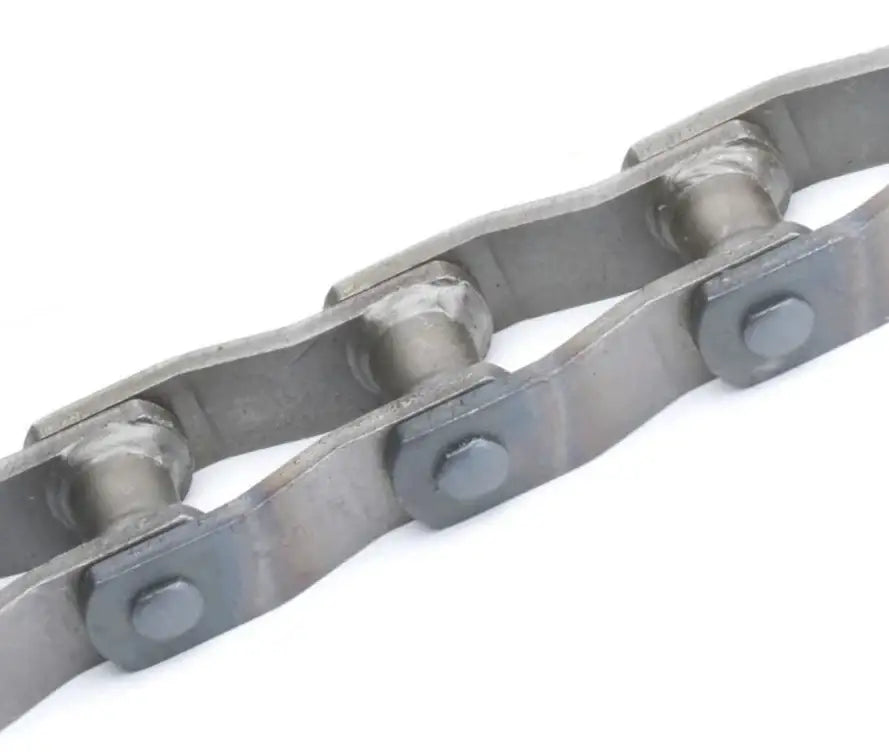

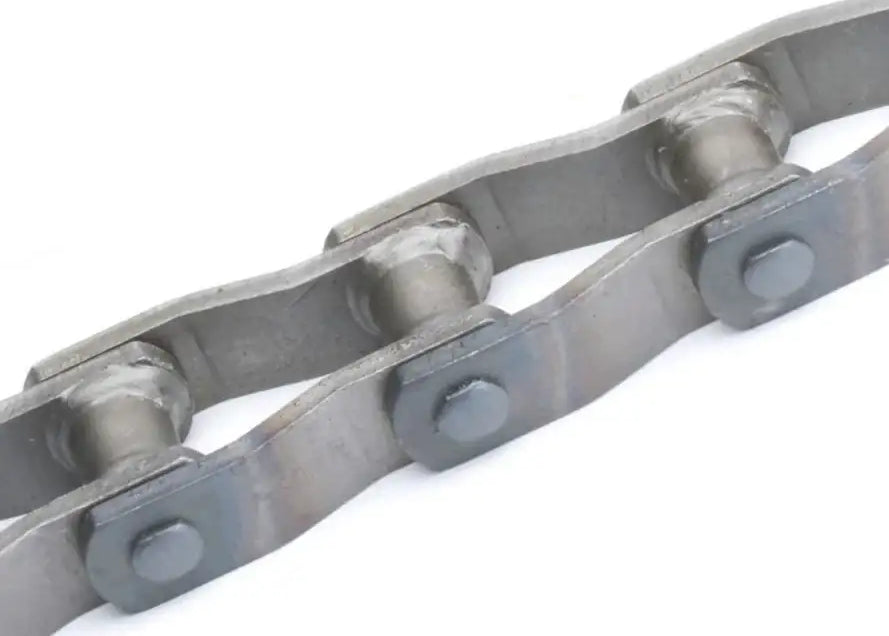

WH-155 Chain

Specialty Chain > Engineering Class Chains > Welded Steel Chain > Offset Sidebar Welded Steel Chain > WH155 Welded Steel Chain

WH-155 Chain

Note: Custom Cut to Length Chain Also Available
SKU: WH-155-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715474358639" , "metafield_value":""}]
WH-155 Chain Features
WH-155 Chain Specifications
This WH-155 chain that we offer exceeds in quality, working life, and strength. Additionally, This WH-155 chain is extremely durable, low maintenance, and is supplied at a great price! Something that is notable about this chain is that each and every component has been heat-treated and constructed using high quality steel to further increase the overall working life and strength of the chain. WH 155 welded steel chain is often recommended for most conveying, driving, and elevating applications were a high-strength and durable steel roller-less chain is required. Some of the applications where WH 155 chain is most commonly found are; heavy-duty conveyors, forest products, grain handling, pulp and paper, and sugar processing.

Dimensions:
WH-155 Chain
  • Part Number: WH-155
  • Pitch (P): 6.050"
  • Tensile Strength: 175,000 LBS
  • Weight: 19.00 LBS/ FT
  • Overall Pin & Cotter (F1): 6.41"
  • Between Sidebars (L): 2.75"
  • Sidebar Thickness (S): 0.56"
  • Sidebar Height (H): 2.50"
  • Rivet Diameter (D6): 1.13"
  • Bushing Diameter (D5): 1.75"
  • Bearing Length (B): 4.44"


Additionally, we offer a full line of high quality sprockets that range in tooth size, bore size, and hub configuration, and is manufactured specifically for WH 155 chain. We can even supply Made To Order (MTO) and custom sprockets to meet your exact application needs. We also offer a full line of attachments for this chain that can be assembled in any configuration needed.
WH-155 Chain__WH-155 Chain


For more information on WH-155 Welded Steel Chain or to get a quote on sprockets or attachments, please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: WH-155
  • Pitch (P): 6.050"
  • Tensile Strength: 175,000 LBS
  • Weight: 19.00 LBS/ FT
  • Overall Pin & Cotter (F1): 6.41"
  • Between Sidebars (L): 2.75"
  • Sidebar Thickness (S): 0.56"
  • Sidebar Height (H): 2.50"
  • Rivet Diameter (D6): 1.13"
  • Bushing Diameter (D5): 1.75"
  • Bearing Length (B): 4.44"
