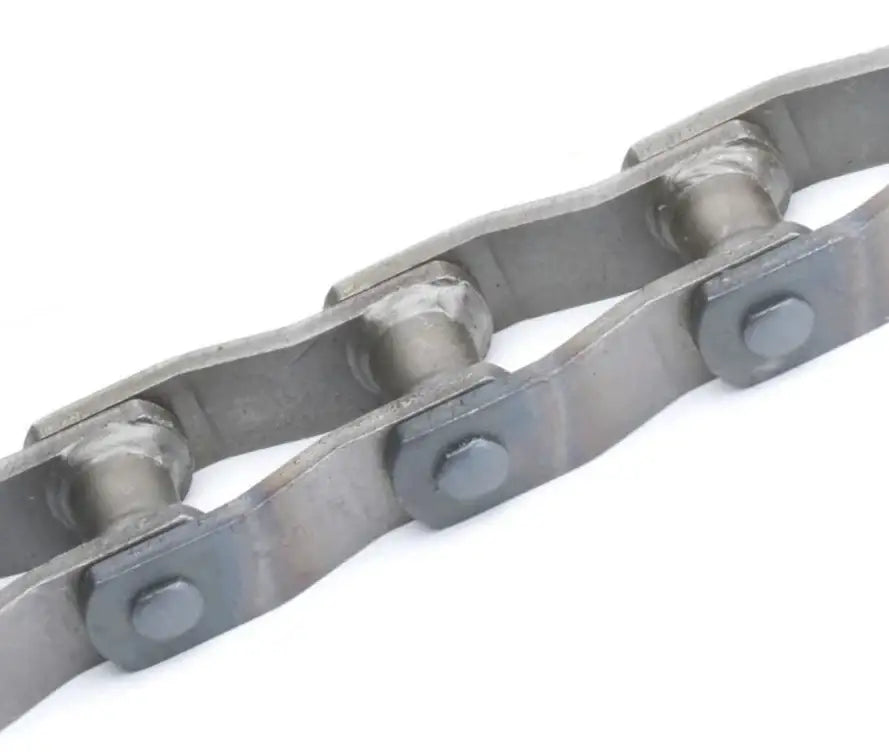

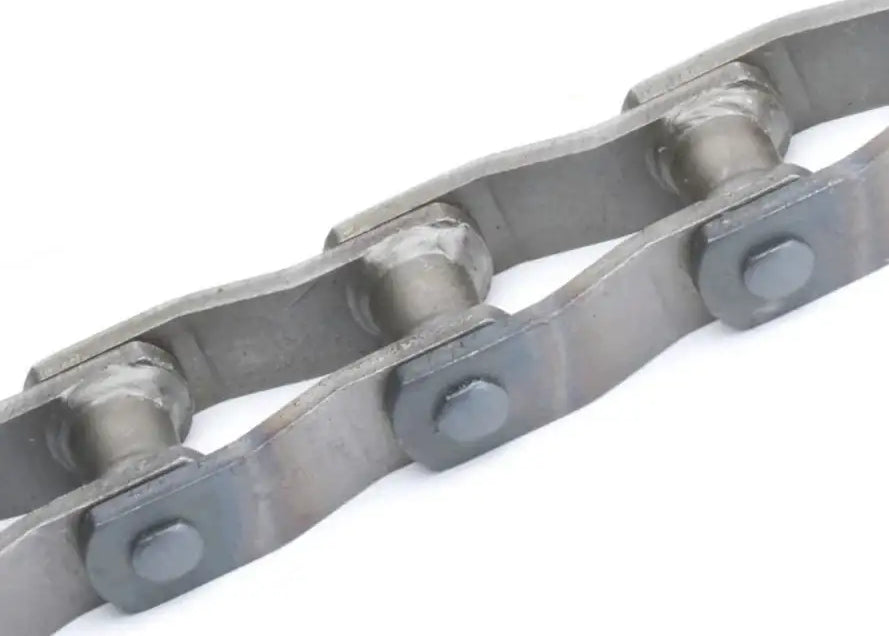

WH-150 Chain

SKU: WH-150-CHAIN
Only 0 left in stockItem is out of stock Item is unavailable
Request a Quote
<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

Call us!

Buy it With:

 [{"variant_id":"51715475439983" , "metafield_value":""}]
WH-150 Chain Description/Features
WH-150 Chain Specifications
This WH-150 chain that we offer exceeds in quality, working life, and strength. Additionally, This WH-150 chain is extremely durable, low maintenance, and is supplied at a great price! Something that is notable about this chain is that each and every component has been heat-treated and constructed using high quality steel to further increase the overall working life and strength of the chain. WH 150 welded steel chain is often recommended for most conveying, driving, and elevating applications were a high-strength and durable steel roller-less chain is required. Some of the applications where WH 150 chain is most commonly found are; heavy-duty conveyors, forest products, grain handling, pulp and paper, and sugar processing.

Dimensions:
WH-150 Chain
  • Part Number: WH150
  • Tensile Strength: 144,000lbs
  • Pitch (A): 6.050"
  • Side Bar Height (B): 2.500"
  • Side Bar Thickness (C): 1/2"
  • Rivet Pin Diameter (D): 1.000"
  • Overall Width (E): 6-1/4"
  • Bearing Length (F): 4-27/64"
  • Barrel Diameter (H): 1.620"
  • Maximum Sprocket Width (G): 2-3/4"
  • Extreme Durability & High Strength
  • Easy Attachment Weld Ability


Additionally, we offer a full line of high quality sprockets that range in tooth size, bore size, and hub configuration, and is manufactured specifically for WH 150 chain. We can even supply Made To Order (MTO) and custom sprockets to meet your exact application needs.
WH-150 Chain__WH-150 Chain__WH-150 Chain


We also offer a full line of attachments for this chain that can be assembled in any configuration needed.
WH-150 Chain


Needing something stronger? Checkout the options below!
WH-150 Chain__WH-150 Chain


For more information on WH-150 Welded Steel Chain or to get a quote on sprockets or attachments, please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: WH-150
  • Tensile Strength: 144,000lbs
  • Pitch (A): 6.050"
  • Side Bar Height (B): 2.500"
  • Side Bar Thickness (C): 1/2"
  • Rivet Pin Diameter (D): 1.000"
  • Overall Width (E): 6-1/4"
  • Bearing Length (F): 4-27/64"
  • Barrel Diameter (H): 1.620"
  • Maximum Sprocket Width (G): 2-3/4"
  • Extreme Durability & High Strength
  • Easy Attachment Weld Ability
