Power Transmission > Sprockets > Engineer Class Sprockets > 62-Series Sprockets

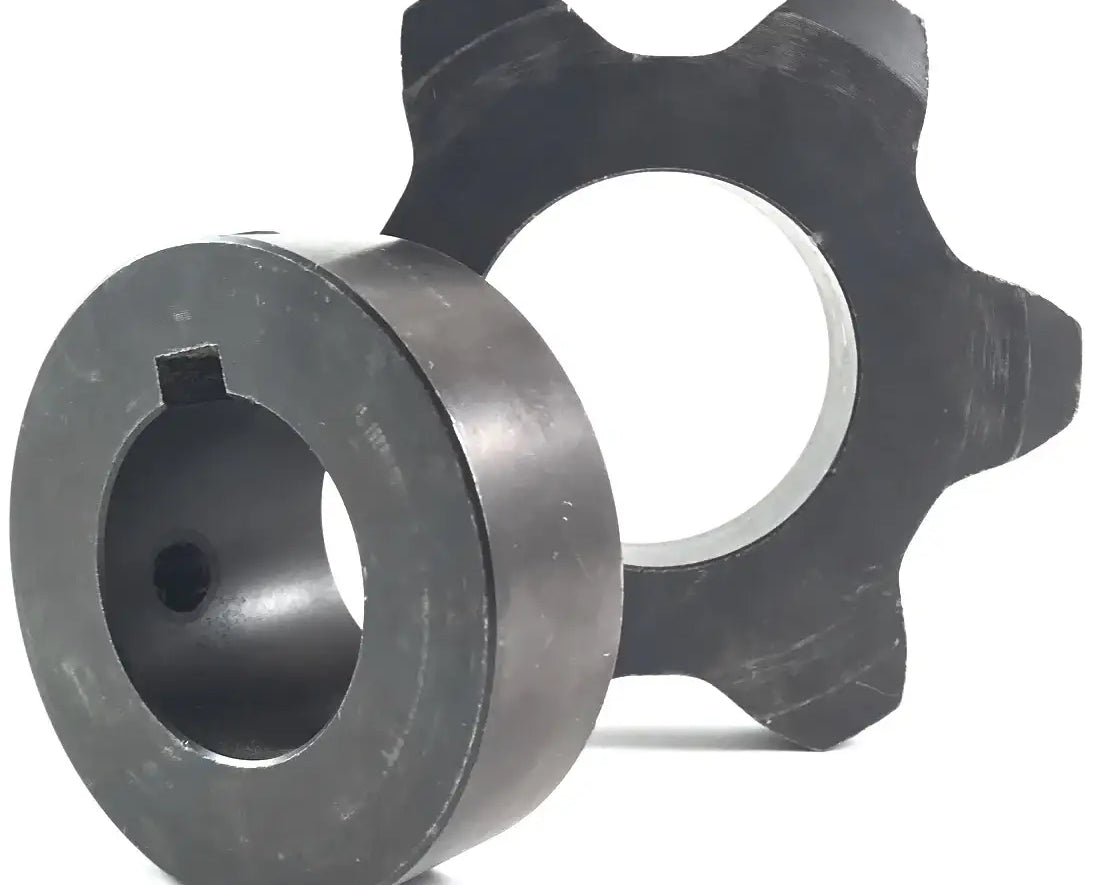

62X8 Weld On Hub Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: WELD-62X8-SPROCKET
Only 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
62X8 Weld On Hub Sprocket Features
62X8 Weld On Hub Sprocket Specifications
This 62X8 sprocket is a 8-tooth steel construction weld on hub style sprocket that is in the 62 series of engineer class sprockets. It is made to accept a X-style weld in hub (which we also stock) and works with an array of chain sizes such as CA620, A620, 432, RR432, 378RX, and IS622 chain. USA Roller Chain and Sprockets always strives to provide the industry leading service we are known for as well as competitive and fair prices. Besides sprockets we also offer a full line of roller and engineer class chains, motors with gear reducers, v-belts, pulleys, and a very wide range of other industrial power transmission products. For more information or to get a quote on 62X8 sprockets or any other products, please contact our customer support team and we will be happy to assist you.
62X8 Sprocket Dimensions
- Sprocket Size: 62X8
- Tooth Count: 8
- Outside Diameter: 4-7/8"
- Root Diameter: 3.64"
- Dimension (A): 2"
- Hub Type Needed: X
- Sprocket Width (B): 11/16"
- Sprocket Weight: 1.83 LBS
- Sprocket Size: 62X8
- Tooth Count: 8
- Outside Diameter: 4-7/8"
- Root Diameter: 3.64"
- Dimension (A): 2"
- Hub Type Needed: X
- Sprocket Width (B): 11/16"
- Sprocket Weight: 1.83 LBS
