WDH480XHDMM Extra Heavy Duty Super Mega Strength Chain
Home > Specialty Chain > Engineering Class Chains > Welded Steel Chain > WDH480XHDMM Extra Heavy Duty Super Mega Strength Chain

WDH480XHDMM Extra Heavy Duty Super Mega Strength Chain

SKU: WDH480XHDMM-CHAIN
In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability
Request a Quote
<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

Call us!

Buy it With:

 [{"variant_id":"51715466789231" , "metafield_value":""}]
WDH480XHDMM Extra Heavy Duty Super Mega Strength Chain Description/Features
WDH480XHDMM Extra Heavy Duty Super Mega Strength Chain Specifications

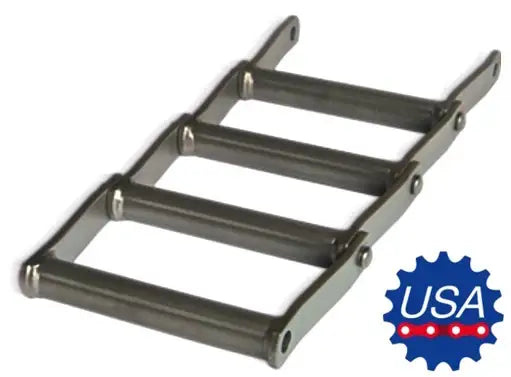

WDH480XHDMM Extra Heavy Duty Super Mega Strength Chain is the strongest standard welded steel chain on the market and is recommended in applications where no other standard chains are not holding up. WDH480XHDMM features fully heat-treated and hardened components that are manufactured out of high-grade alloy steel that has been hardened and heat-treated to give the chain an extended working life and extreme durability. It also has thicker side plates and larger pins to strengthen the chain even more. Additionally this chain features an extra heavy-duty special formed barrel of heavy wall tubing for the most severe and harsh applications. WDH480XHDMM chain may be used in conditions where the chain is subject extreme high loads and harsh operating conditions of extreme impacts.

Dimensions:
WDH480XHDMM Extra Heavy Duty Super Mega Strength Chain
  • Chain Size: WDH480XHDSM
  • Pitch (A): 8.00"
  • Ultimate Strength: 150,000 LBS
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 5/8"
  • Pin Diameter (D): 1.00"
  • Overall Width (E): 15-1/4"
  • Length Of Bearing (F): 13.00"
  • Maximum Sprocket Thickness (G): 11.00"
  • Links Per Foot: 1.50
  • Weight Per Foot: 25.0 LBS


We also offer attachments for this chain including; wing attachments, C1/2 - C4 attachments, and even custom attachments. We can assemble these attachments in any configuration needed to meet your exact needs.

WDH480XHDMM Extra Heavy Duty Super Mega Strength Chain


Additionally, we offer a full line of high quality WDH480XHDMM chain sprockets that exceed in quality, working life, and are supplied at remarkably great prices. We even supply custom made to order sprockets within a really great lead-time. For pricing and availability on WDH480XHDMM Extra Heavy Duty Super Mega Strength chain, sprockets, or attachments please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: WDH480XHDSM
  • Pitch (A): 8.00"
  • Ultimate Strength: 150,000 LBS
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 5/8"
  • Pin Diameter (D): 1.00"
  • Overall Width (E): 15-1/4"
  • Length Of Bearing (F): 13.00"
  • Maximum Sprocket Thickness (G): 11.00"
  • Links Per Foot: 1.50
  • Weight Per Foot: 25.0 LBS
