WDH122XHDSM Extra Heavy Duty Super Strength Chain Description/Features
WDH122XHDSM Extra Heavy Duty Super Strength Chain Specifications
WDH122XHDSM Extra Heavy Duty Super Strength Chain is recommended in applications where the standard WD122, WDH122, or WDH122XHD chains are not holding up. WDH122XHDSM features fully heat-treated and hardened components that are manufactured out of high-grade alloy steel to give the chain an extended working life and extreme durability. It also has thicker side plates and larger pins to strengthen the chain even more. Additionally this chain features a special formed barrel of heavy wall tubing for severe applications. WDH122XHDSM chain may be used in conditions where the chain is subject to higher loads and operating conditions of high impacts.

Dimensions:
WDH122XHDSM Extra Heavy Duty Super Strength Chain
  • Chain Size: WDH122XHDSM
  • Pitch (A): 8.00"
  • Ultimate Strength: 150,000 LBS
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 5/8"

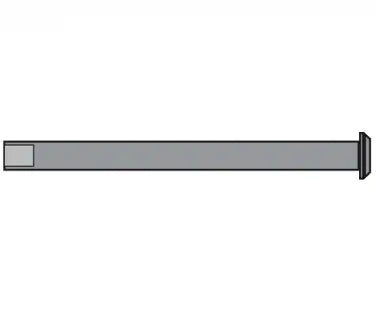

  • Pin Diameter (D): 1.00"
  • Overall Width (E): 12-3/4"
  • Length Of Bearing (F): 10-1/2"
  • Maximum Sprocket Thickness (G): 8-3/4"
  • Links Per Foot: 1.50
  • Weight Per Foot: 20.0 LBS


We also offer attachments for this chain including; wing attachments, C1/2 - C4 attachments, and even custom attachments. We can assemble these attachments in any configuration needed to meet your exact needs. Additionally, we offer a full line of high quality WDH122XHDSM chain sprockets that exceed in quality, working life, and are supplied at remarkably great prices. We can even supply custom made to order sprockets within a really great lead-time. For pricing and availability on WDH122XHDSM Extra Heavy Duty Super Strength chain, sprockets, or attachments please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: WDH122XHDSM
  • Pitch (A): 8.00"
  • Ultimate Strength: 150,000 LBS
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 5/8"
  • Pin Diameter (D): 1.00"
  • Overall Width (E): 12-3/4"
  • Length Of Bearing (F): 10-1/2"
  • Maximum Sprocket Thickness (G): 8-3/4"
  • Links Per Foot: 1.50
  • Weight Per Foot: 20.0 LBS
