WDH122XHDMM Extra Heavy Duty Super Mega Strength Chain Features
WDH122XHDMM Extra Heavy Duty Super Mega Strength Chain Specifications

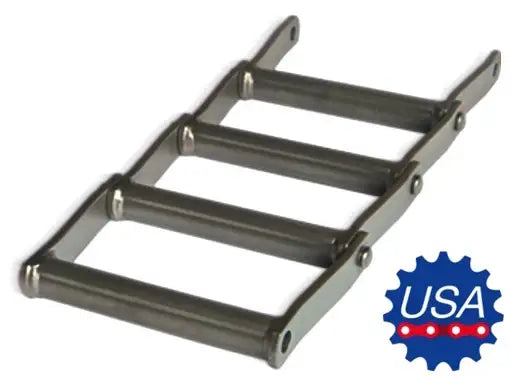

WDH122XHDMM Extra Heavy Duty Super Mega Strength Chain is the strongest standard welded steel chain on the market and is recommended in applications where no other standard chains are not holding up. WDH122XHDMM features fully heat-treated and hardened components that are manufactured out of high-grade alloy steel that has been hardened and heat-treated to give the chain an extended working life and extreme durability. It also has thicker side plates and larger pins to strengthen the chain even more. Additionally this chain features an extra heavy-duty special formed barrel of heavy wall tubing for the most severe and harsh applications. WDH122XHDMM chain may be used in conditions where the chain is subject extreme high loads and harsh operating conditions of extreme impacts.

Dimensions:
WDH122XHDMM Extra Heavy Duty Super Mega Strength Chain
  • Chain Size: WDH122XHDSM
  • Pitch (A): 8.00"
  • Ultimate Strength: 150,000 LBS
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 5/8"

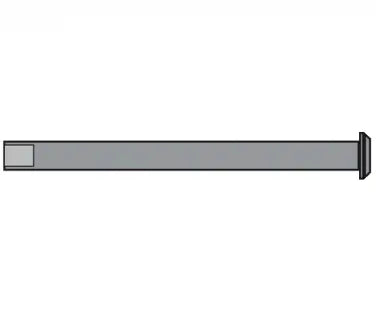

  • Pin Diameter (D): 1.00"
  • Overall Width (E): 12-3/4"
  • Length Of Bearing (F): 10-1/2"
  • Maximum Sprocket Thickness (G): 8-3/4"
  • Links Per Foot: 1.50
  • Weight Per Foot: 22.0 LBS


We also offer attachments for this chain including; wing attachments, C1/2 - C4 attachments, and even custom attachments. We can assemble these attachments in any configuration needed to meet your exact needs. Additionally, we offer a full line of high quality WDH122XHDMM chain sprockets that exceed in quality, working life, and are supplied at remarkably great prices. We can even supply custom made to order sprockets within a really great lead-time. For pricing and availability on WDH122XHDMM Extra Heavy Duty Super Mega Strength chain, sprockets, or attachments please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: WDH122XHDSM
  • Pitch (A): 8.00"
  • Ultimate Strength: 150,000 LBS
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 5/8"
  • Pin Diameter (D): 1.00"
  • Overall Width (E): 12-3/4"
  • Length Of Bearing (F): 10-1/2"
  • Maximum Sprocket Thickness (G): 8-3/4"
  • Links Per Foot: 1.50
  • Weight Per Foot: 22.0 LBS
