WDH118SM Super Strength Chain

Specialty Chain > Engineering Class Chains > Welded Steel Chain > Welded Steel Drag Chain > WDH118 Drag Chain

WDH118SM Super Strength Chain

Note: Custom Cut to Length Chain Also Available
SKU: WDH118SM-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715464298863" , "metafield_value":""}]
WDH118SM Super Strength Chain Features
WDH118SM Super Strength Chain Specifications

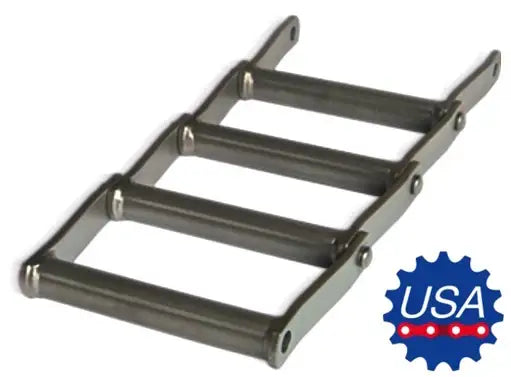

WDH118SM Super Strength Chain features fully heat-treated components and a special formed barrel of heavy wall tubing for severe applications. Having fully heat-treated components makes this chain extremely durable and high strength, but adding the heavy wall tubing makes the chain even more durable. WDH118SM Super Strength Chain has been engineered to out last and out perform standard welded steel drag chain and is manufactured using a select grade of high quality alloy steel. This chain may be used in conditions where the chain is subject to higher loads and operating conditions of high impacts.

Dimensions:
WDH118SM Super Strength Chain
  • Chain Size: WDH118SM
  • Pitch (A): 8.00"
  • Ultimate Strength: 120,000 LBS
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 1/2"

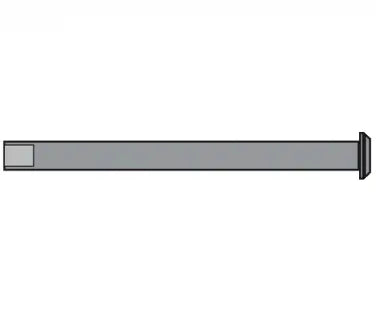

  • Pin Diameter (D): 1.00"
  • Overall Width (E): 16-5/8"
  • Length Of Bearing (F): 14-7/8"
  • Maximum Sprocket Thickness (G): 13-1/4"
  • Links Per Foot: 1.50
  • Weight Per Foot: 20.8 LBS


Additionally, we offer a full line of high quality WDH118SM chain sprockets that exceed in quality, working life, and are supplied at remarkably great prices. We even supply custom made to order sprockets within a really great lead-time.

WDH118SM Super Strength Chain


We also supply WDH118SM wing attachments along with the C 1/2 - C4 attachments and even the RR attachments, and have them assembled onto the chain in any configuration needed.

WDH118SM Super Strength Chain


For pricing and availability on WDH118SM super strength chain, sprockets, or attachments please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: WDH118SM
  • Pitch (A): 8.00"
  • Ultimate Strength: 120,000 LBS
  • Sidebar Height (B): 2.00"
  • Sidebar Thickness (C): 1/2"
  • Pin Diameter (D): 1.00"
  • Overall Width (E): 16-5/8"
  • Length Of Bearing (F): 14-7/8"
  • Maximum Sprocket Thickness (G): 13-1/4"
  • Links Per Foot: 1.50
  • Weight Per Foot: 20.8 LBS
