WD580 Chain Description/Features
WD580 Chain Specifications

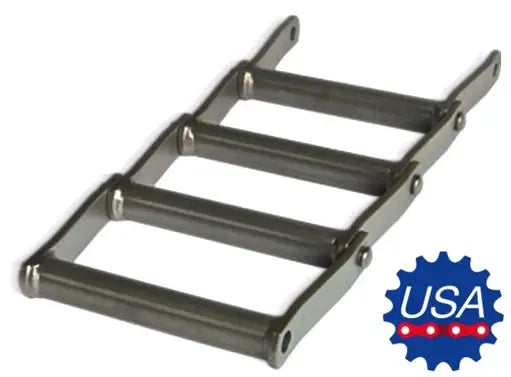

WD580 chain features a large and wide pushing area, which gives it the capability of caring a sizable capacity when operating at low to even moderate speeds. WD580 welded steel chain is found in a wide range of applications including; conveyors, forest products, grain handling, heavy duty conveyors, pulp and paper industry, sugar processing, and more! This WD580 drag chain is engineered to be durable, reliable, and high strength. Then manufactured using a select grade of high quality alloy steels to provide a long working life with solid performance.

Dimensions:
WD580 Chain
  • Chain Size: WD580
  • Pitch (P): 8.00"
  • Sidebar Height (H): 2.00"
  • Sidebar Thickness (S): 0.50"
  • Pin Diameter (D6): 1.00"
  • Overall Width (F1): 14.63"
  • Length Of Bearing (B): 12.10"
  • Maximum Sprocket Thickness (L): 11.20"
  • Weight Per Foot: 19.40 LBS

Additionally, we offer a full line of high quality WD580 chain sprockets that exceed in quality, working life, and are supplied at remarkably great prices. We can even supply custom made to order sprockets within a really great lead-time. We can also supply WD580 wing attachments along with the C 1/2 - C4 attachments and even the RR attachments, and have them assembled onto the chain in any configuration needed. For pricing and availability on WD580 chain, sprockets, or attachments please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: WD580
  • Pitch (P): 8.00"
  • Sidebar Height (H): 2.00"
  • Sidebar Thickness (S): 0.50"
  • Pin Diameter (D6): 1.00"
  • Overall Width (F1): 14.63"
  • Length Of Bearing (B): 12.10"
  • Maximum Sprocket Thickness (L): 11.20"
  • Weight Per Foot: 19.40 LBS
