WD112 Chain

Specialty Chain > Engineering Class Chains > Welded Steel Chain > Welded Steel Drag Chain > WD112 Drag Chain

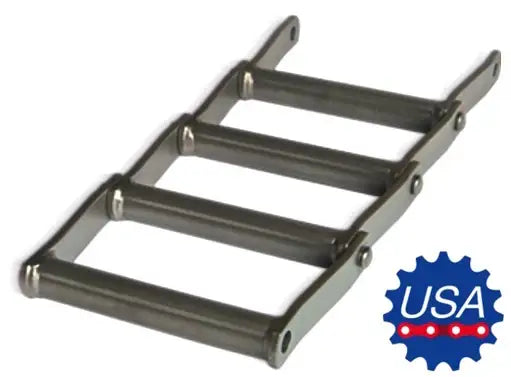

WD112 Welded Steel Drag Chain 8" Pitch

Note: Custom Cut to Length Chain Also Available
SKU: WD112-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715462758767" , "metafield_value":""}]
WD112 Welded Steel Drag Chain 8" Pitch Features
WD112 Welded Steel Drag Chain 8" Pitch Specifications
WD112 chain features a large and wide pushing area, which gives it the capability of caring a sizable capacity when operating at low to even moderate speeds. WD112 welded steel chain is found in a wide range of applications including; conveyors, forest products, grain handling, heavy duty conveyors, pulp and paper industry, sugar processing, and more! This WD112 drag chain is engineered to be durable, reliable, and high strength. Then manufactured using a select grade of high quality alloy steels to provide a long working life with solid performance.

Dimensions:
WD112 Chain
  • Chain Size: WD112
  • Pitch (A): 8.00"
  • Ultimate Strength: 51,000 LBS
  • Sidebar Height (B): 1-1/2"
  • Sidebar Thickness (C): 3/8"
  • Pin Diameter (D): 3/4"
  • Overall Width (E): 11-3/4"
  • Length Of Bearing (F): 10-1/4"
  • Maximum Sprocket Thickness (G): 9.00"
  • Links Per Foot: 1.5
  • Weight Per Foot: 10.0 LBS


Additionally, we offer a full line of high quality WD112 chain sprockets that exceed in quality, working life, and are supplied at remarkably great prices. We even supply custom made to order sprockets within a really great lead-time.

WD112 Chain


We also supply WD112 wing attachments along with the C 1/2 - C4 attachments and even the RR attachments, and have them assembled onto the chain in any configuration needed.

WD112 Chain


For pricing and availability on WD112 chain, sprockets, or attachments please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: WD112
  • Pitch (A): 8.00"
  • Ultimate Strength: 51,000 LBS
  • Sidebar Height (B): 1-1/2"
  • Sidebar Thickness (C): 3/8"
  • Pin Diameter (D): 3/4"
  • Overall Width (E): 11-3/4"
  • Length Of Bearing (F): 10-1/4"
  • Maximum Sprocket Thickness (G): 9.00"
  • Links Per Foot: 1.5
  • Weight Per Foot: 10.0 LBS
