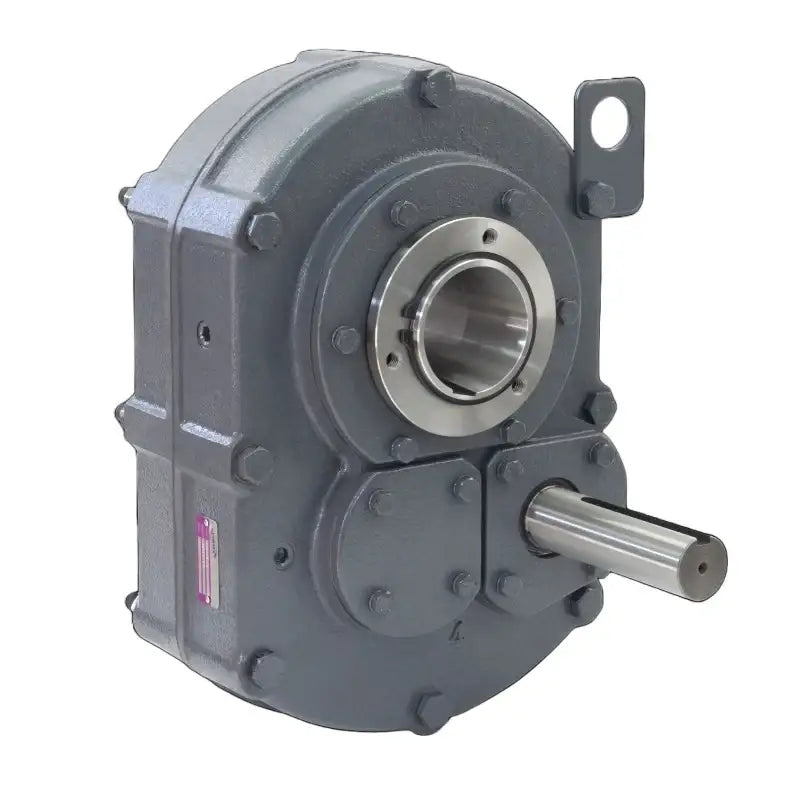

Type TXT505 Reducer 5:1 Ratio Size 5 Shaft Mount Reducer
Login to Request a Quote
Introducing the type TXT505 reducer, your ultimate ally in achieving unmatched reliability, performance, and torque, even in the most demanding environments. Crafted as a seamless drop-in replacement for other brands, the type TXT505 reducer has a 5:1 reduction ratio and a convenient size 5 box, making it the ideal choice for energizing conveyors in the dynamic worlds of aggregate, agriculture, and material handling.
What truly sets the type TXT505 reducer apart is its A.G.M.A precision case-hardened ground gearing, masterfully forged from high-grade steel. This engineering marvel dramatically reduces heat, friction, and vibration, outshining its competitors. Housed within a robust cast iron shell, the type TXT505 reducer delivers extraordinary horsepower transmission and promises a long-lasting operational life.
Equipped with high-precision bearings and a high-strength shaft, the type TXT505 reducer ensures an impeccable fit and extended bearing life. Its innovative spring-loaded rubber jacketed double-lipped seals are designed to prevent any leakage, with each unit undergoing rigorous pressure testing for guaranteed leak-free performance. Plus, the exceptional corrosion-resistant finish means this gearbox is ready to brave the elements, offering enduring durability in outdoor environments.
For more information or to request a quote on the type TXT505 reducer, reach out to our enthusiastic customer service team. We're excited to help you harness the full potential of the type TXT505 reducer for your projects!
Type TXT505 Reducer Dimensions
- Part #: VORTXT505
- Ratio: 5:1
- Box Size: 5
- Dimension (L): 13.13"
- Dimension (M): 18.31"
- Dimension (N): 10.52"
- Dimension (F): 1.9375"
- Key: 0.50" X 0.25" X 4.50"
- Maximum Dimension (B): 2-15/16"
- Dimension (C): 1.81"
- Dimension (E): 5.63"
- Dimension (G): 3.44"
- Dimension (W): 1.75"
- Dimension (U): 1.44"
- Dimension (X): 5.05"
- Dimension (V): 4.45"
- Dimension (Q): 5.74"
- Dimension (Y): 1.91"
- Dimension (H): 6.31"
- Dimension (A1): 3.04"
- Dimension (A2): 6.43"
- Dimension (A3): 5.67"
- Dimension (h): 6.56"
- Minimum Dimension (R): 29.19"
- Maximum Dimension (R): 35.19"
- Dimension (P): 0.50"
- Dimension (T): 4.00"
- Gear Box Weight: 204 LBS
