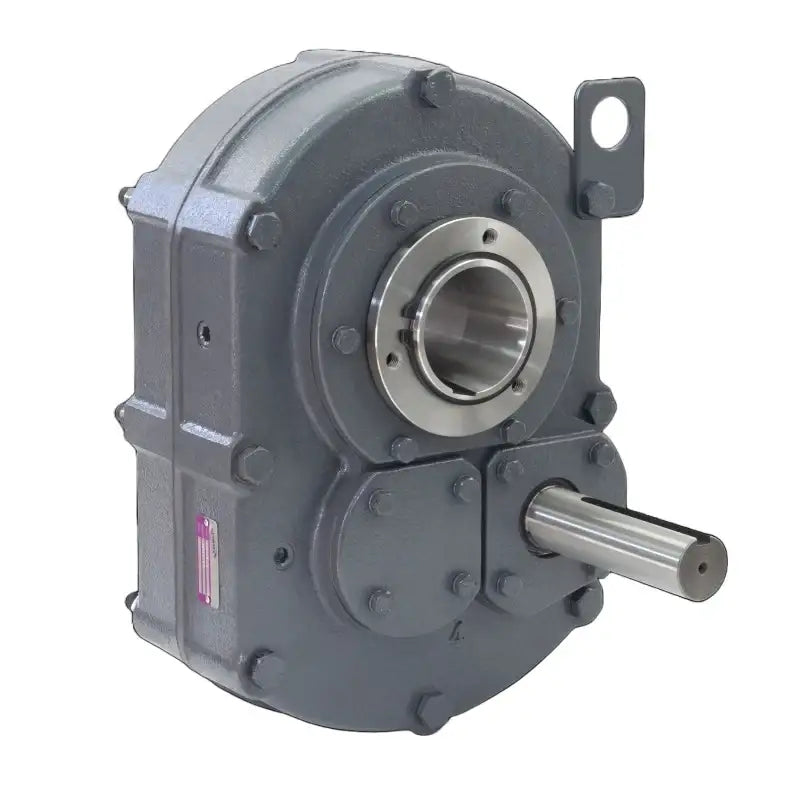

Type TXT409 Reducer 9:1 Ratio Size 4 Shaft Mount Reducer
Login to Request a Quote
The type TXT409 Reducer is engineered for excellence in power transmission, offering unmatched reliability and performance. As a direct drop-in replacement, it integrates seamlessly into existing systems.
This essential component reduces input speed while boosting torque output, optimizing machinery operations. With a 9:1 reduction ratio and sturdy size 4 box, the TXT409 is perfect for conveyors in aggregate, agricultural, and material handling sectors.
Key Features:
- A.G.M.A precision case-hardened ground gearing for smooth, efficient operation.
- Durable cast iron housing to withstand demanding environments.
- High-precision bearings and high-strength shaft for optimal fitment.
- Innovative spring-loaded rubber jacketed double-lipped seals to prevent leakage.
- Corrosion-resistant finish for extended outdoor durability.
Ideal for conveyor systems, crushers, and mixers in industries like mining and construction, the TXT409's versatility and robustness are unmatched.
For more details or a quote, contact our customer service team. Let the type TXT409 Reducer power your projects efficiently!
Type TXT409 Reducer Dimensions
- Part #:VORTXT409
- Ratio: 9:1
- Box Size: 4
- Dimension (L): 10.38"
- Dimension (M): 15.13"
- Dimension (N): 9.98"
- Dimension (F): 1.4375"
- Key: 0.375" x 0.1875" x 4.06"
- Maximum Dimension (B): 2-7/16"
- Dimension (C): 1.75"
- Dimension (E): 4.81"
- Dimension (G): 3.44"
- Dimension (W): 1.75"
- Dimension (U): 1.44"
- Dimension (X): 4.79"
- Dimension (V): 3.71"
- Dimension (Q): 5.57"
- Dimension (Y): 1.72"
- Dimension (H): 6.13"
- Dimension (A1): 2.76"
- Dimension (A2): 5.53"
- Dimension (A3): 4.79"
- Dimension (h): 5.50"
- Minimum Dimension (R): 29.19"
- Maximum Dimension (R): 35.19"
- Dimension (P): 0.55"
- Dimension (T): 4.00"
- Gear Box Weight: 156 LBS
